Iron isotope insights into equatorial Pacific biogeochemistry

The EUCFe cruise (RV Kilo Moana, 2006) was designed to characterize sources of Fe to the western equatorial Pacific and its transport by the Equatorial Undercurrent (EUC), a narrow and fast eastward current flowing along the equator, to the eastern equatorial Pacific High Nutrient Low Chlorophyll (HNLC) region. This study presents seawater dissolved (DFe) and particulate (PFe) iron concentrations and isotopic compositions (δ⁵⁶DFe and δ⁵⁶PFe) from 15 stations in the equatorial band (2° N–2° S) between Papua New Guinea and 140° W, over more than 8500 km along the equator and in the upper 1000 m of the water column.

δ⁵⁶DFe and δ⁵⁶PFe ranged from −0.22 ‰ to +0.79 ± 0.07 ‰ and from −0.52 ‰ to +0.43 ± 0.07 ‰, respectively (relative to IRMM-14, 95 % confidence interval). Source signatures, biogeochemical processes and transport all contribute to these observations. Two distinct areas, one under continental influence (the western equatorial Pacific) and an open ocean region (the central equatorial Pacific), emerged from the data. In the area under continental influence, high PFe concentrations along with δ⁵⁶DFe values systematically heavier than that of δ⁵⁶PFe indicated an equilibrium fractionation and the co-occurrence of chemical fluxes from both phases toward the other. This exchange occurs through non-reductive processes, as previously proposed from three of the eight stations of this area (Labatut et al., 2014) and extends up to 1200 km from the coast. In the open ocean area, preservation of a DFe isotopic signature of ∼ +0.36 ‰ within the EUC, from Papua New Guinea to the central equatorial Pacific (7800 km), confirmed the origin of the DFe carried within this current toward the HNLC region. At the same depth, bordering the EUC at 2° N and 2° S at 140° W, light isotopic signatures suggested that iron was originating from the eastern Pacific oxygen minimum zones. These light signatures were also observed in deeper central waters, between 200 and 500 m. Our data did not allow conclusions about fractionation during uptake by phytoplankton, but indicated that any fractionation, if present, must be small, no larger than a few tenths of a per mil.

1 Introduction

Iron (Fe) is an essential nutrient for phytoplankton, enabling them to fulfil their role as primary producers (Morel et al., 2020). Through its influence on primary productivity and plankton speciation, Fe plays a critical role in regulating the biological carbon pump and, consequently, the global carbon cycle and climate. Fe concentrations in the surface open ocean are often low (of the order of 0.1 nmol kg⁻¹), potentially limiting primary productivity (Martin, 1992). Regions where Fe is limiting, despite the availability of macronutrients, are termed High Nutrient Low Chlorophyll (HNLC) areas. One notable HNLC region is the eastern equatorial Pacific (Chisholm and Morel, 1991), where Fe is believed to have a main source from the western Pacific and to be transported eastward within the Equatorial Undercurrent (EUC) (Murray et al., 1994; Coale et al., 1996; Mackey et al., 2002; Kaupp et al., 2011). The EUC is an eastward-flowing subsurface current associated with upwellings that transports Fe from Papua New Guinea (PNG) toward South America along the equator (Gordon et al., 1997; Kaupp et al., 2011; Radic et al., 2011; Slemons et al., 2012; Winckler et al., 2016). Iron within the EUC is assumed to have both lithogenic and hydrothermal origins (Gordon et al., 1997). Specifically, the lithogenic component is suggested to primarily originate from rivers and sediments on the PNG continental margin (Mackey et al., 2002; Slemons et al., 2010; Radic et al., 2011; Labatut et al., 2014).

Although Fe concentration data are fundamental, isotopic measurements provide deeper insight into both the provenance of Fe and internal processes governing its cycling (Lacan et al., 2008; John et al., 2012; Conway and John, 2014; Ellwood et al., 2015). The isotopic composition of Fe, expressed as δ⁵⁶Fe in per mil (‰), is defined as the deviation of the ${}^{\mathrm{56}}\mathrm{Fe}{/}^{\mathrm{54}}\mathrm{Fe}$ ratio of a sample from that of the IRMM-14 standard:

$$\begin{array}{}\text{(1)}& {\mathit{\delta }}^{\mathrm{56}}\mathrm{Fe}={\displaystyle \frac{{\left({}^{\mathrm{56}}\mathrm{Fe}{/}^{\mathrm{54}}\mathrm{Fe}\right)}_{\mathrm{sample}}}{{\left({}^{\mathrm{56}}\mathrm{Fe}{/}^{\mathrm{54}}\mathrm{Fe}\right)}_{\text{IRMM-14}}}}-\mathrm{1}\end{array}$$

The isotopic signatures can trace Fe from distinct sources, including fluvial inputs (Fantle and DePaolo, 2004; Bergquist and Boyle, 2006; Ingri et al., 2006), sedimentary inputs (Severmann et al., 2006; Homoky et al., 2009; Radic et al., 2011; Labatut et al., 2014), hydrothermal inputs (Sharma et al., 2001; Severmann et al., 2004; Rouxel et al., 2008; Bennett et al., 2009), and atmospheric inputs (Waeles et al., 2007; Flament et al., 2008; Kurisu et al., 2016; Camin et al., 2025). They also provide information on internal oceanic processes. Processes such as biological assimilation, dissolution, sorption, precipitation, complexation and redox reactions, can modify the isotopic composition of Fe, through isotopic fractionation.

Despite advances, substantial uncertainties remain regarding both the isotopic signature of sources and the isotopic fractionation of processes. Hydrothermal and sedimentary sources are poorly characterized due to limited understanding of the processes governing Fe exchange and speciation. Additionally, the extent and mechanisms of isotopic fractionation remain incompletely understood. For example, fractionation caused by phytoplankton during biological uptake remains uncertain, with studies suggesting preferential uptake of either lighter or heavier isotopes (Lacan et al., 2008; Radic et al., 2011; Conway and John, 2014; Ellwood et al., 2015, 2020; Klar et al., 2018; Sieber et al., 2021; Tian et al., 2023; John et al., 2024).

To better understand the sources, transport, and cycling of Fe in this region, the EUCFe cruise (Equatorial Undercurrent Fe cruise) was conducted across the western and central equatorial Pacific (RV Kilo Moana, PI: J. W. Murray, 2006). Iron isotope data from the EUCFe cruise were previously published from four stations: three located in the west near PNG and one in the open ocean (0°, 180° E) (Radic et al., 2011; Labatut et al., 2014). At the three stations near PNG, an important source of dissolved Fe (DFe) was attributed to non-reductive exchange processes between dissolved and mainly lithogenic particulate phases. The Fe isotope signatures observed at the open ocean station indicated that in the deeper layer of the EUC the Fe isotope signatures from the western Pacific were preserved toward the open ocean over more than 4000 km. The Fe isotopic composition of aerosols, collected during the cruise, was also documented. Their slightly heavy signatures, δ⁵⁶PFe = $+\mathrm{0.31}\pm \mathrm{0.21}$ ‰ (2 SD, n=9), were interpreted as reflecting isotopic fractionation due to partial dissolution of crustal dust during atmospheric transport (Camin et al., 2025).

This present study reports Fe isotopic data from an additional 11 stations from the EUCFe cruise in the equatorial band (2° N–2° S) between Papua New Guinea and 140° W, over more than 8500 km along the equator and in the top 1000 m of the water column. By expanding the spatial coverage of concentration and isotopic measurements, we constrain the basin scale Fe biogeochemical cycle in the western and central equatorial Pacific.

2 Hydrodynamical context, water masses and currents

Seawater samples (n=76) were collected during the EUCFe cruise from the surface to 1000 m depth in the western and central equatorial Pacific Ocean. This area is influenced by the South and the North Pacific subtropical gyres that shape the large-scale circulation. The equatorial branches of those gyres are westward currents extending from the surface to approximately 400 m depth (Cravatte et al., 2017): the North Equatorial Current (NEC) and the South Equatorial Current (SEC). The main surface and subsurface currents and the EUCFe stations with δ⁵⁶Fe data are represented in Fig. 1.

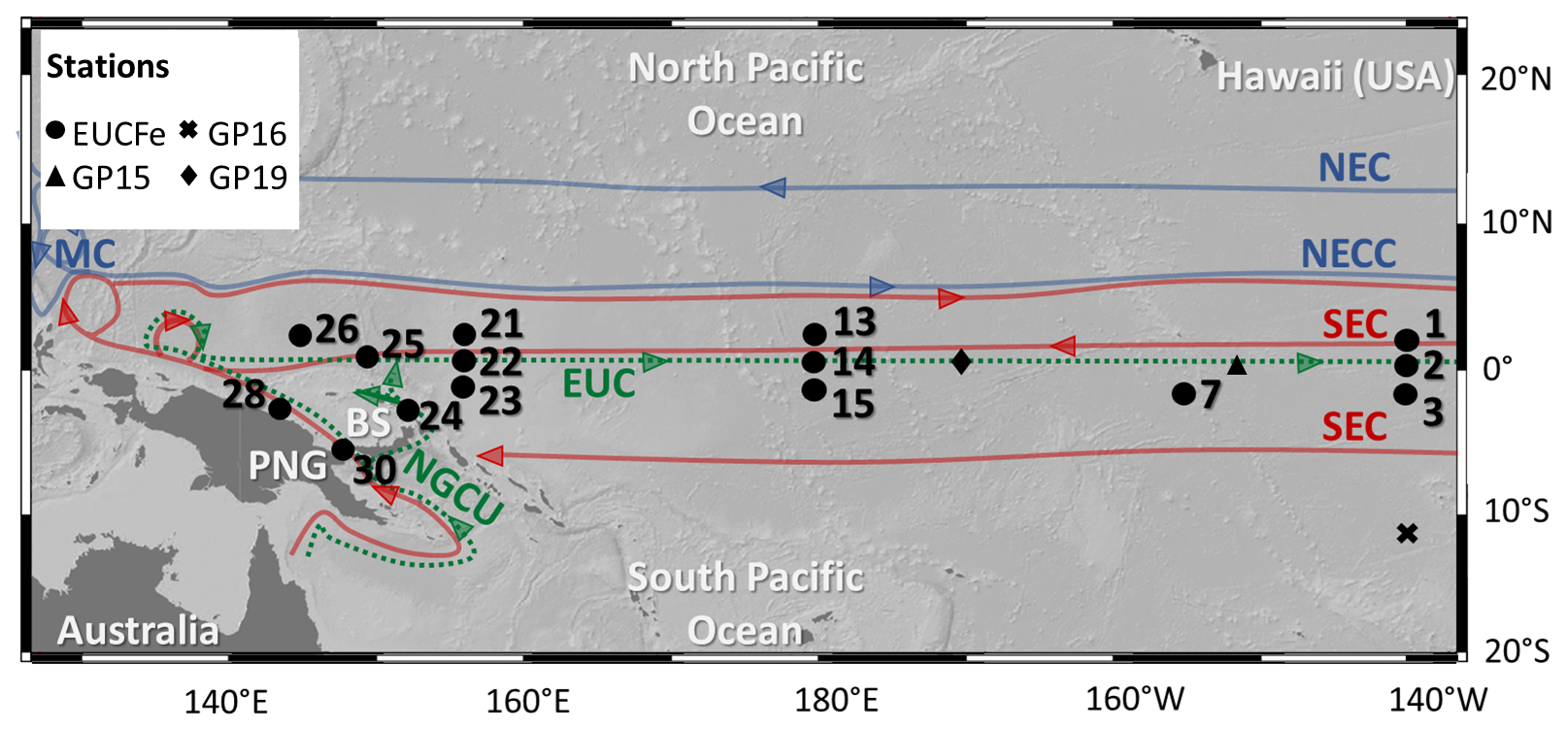

Figure 1 Map of the EUCFe stations and some GP15, GP16 and GP19 stations. Main surface and subsurface currents are represented, in blue those carrying water masses of northern origins, in red those carrying waters of southern origins and in dashed green the undercurrents. BS: Bismarck Sea; EUC: Equatorial UnderCurrent; MC: Mindanao Current; NEC: North Equatorial Current; NECC: North Equatorial CounterCurrent; NGCU: New Guinea Coastal Undercurrent; SEC: South Equatorial Current (Delcroix et al., 1992; Fine et al., 1994; Kashino et al., 1996, 2007; Johnson et al., 2002; Tomczak and Godfrey, 2003).

One of the specific structures of this circulation is the Equatorial Undercurrent (EUC). It is an intense subsurface equatorial current, with velocities up to 1 m s⁻¹ (Philander, 1973), flowing along the equator over 14 000 km (Tomczak and Godfrey, 2003). Its core rises toward the surface eastward, from an average depth of 200 m in the western equatorial Pacific, to depths of 130 m in the central equatorial Pacific and 40 m in the eastern equatorial Pacific (Tomczak and Godfrey, 2003; Talley et al., 2011). It is fed by waters from the Low-Latitude Western Boundary Currents (LLWBCs) composed at two-thirds by southern currents (New Guinea Coastal Current, New Guinea Coastal Undercurrent, New Ireland Coastal Undercurrent) and at one-third by northern currents (Mindanao Current) (Tsuchiya et al., 1989; Butt and Lindstrom, 1994; Fine et al., 1994; Rodgers et al., 2003; Grenier et al., 2011). The EUC is therefore enriched with nutrients of continental origins and plays an essential role supplying the eastern equatorial Pacific HNLC area through the equatorial upwelling (Coale et al., 1996; Ryan et al., 2006; Slemons et al., 2009; Kaupp et al., 2011).

Below the EUC, there is a westward subsurface flow, the Equatorial Intermediate Current (EIC). The EIC is bounded by eastward North and South Subsurface Countercurrents (NSCC and SSCC) centered around 2° N and 2° S, not shown in Fig. 1 (Tomczak and Godfrey, 2003; Cravatte et al., 2017).

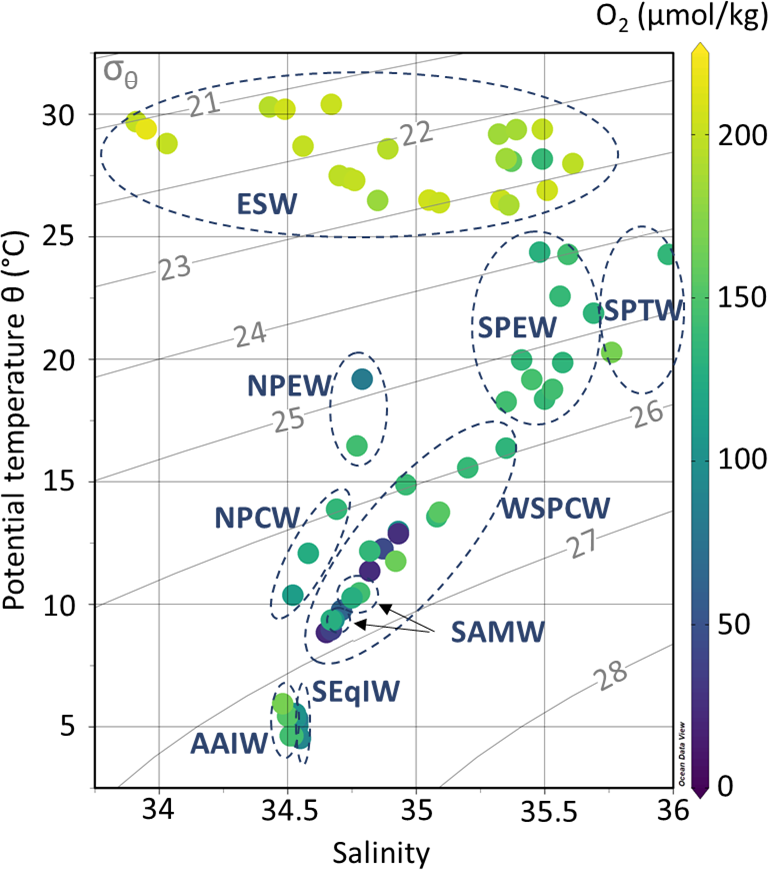

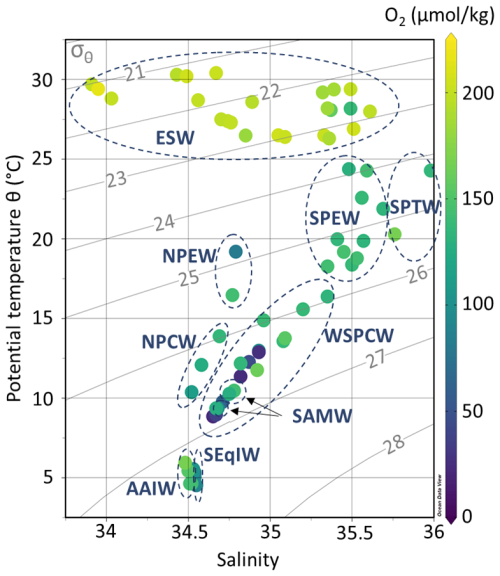

Figure 2 Potential temperature (θ, °C), salinity (S), dissolved oxygen concentrations (O₂, µmol kg⁻¹) of EUCFe samples. Isopycnals are shown in gray lines (σ_θ, kg m⁻³). The dashed ellipses show water masses: Equatorial Surface Water (ESW), South Pacific Tropical Water (SPTW), South Pacific Equatorial Water (SPEW), North Pacific Equatorial Water (NPEW), Western South Pacific Central Water (WSPCW), North Pacific Central Water (NPCW), South Antarctic Mode Water (SAMW), South Equatorial Intermediate Water (SeqIW) and Antarctic Intermediate Water (AAIW).

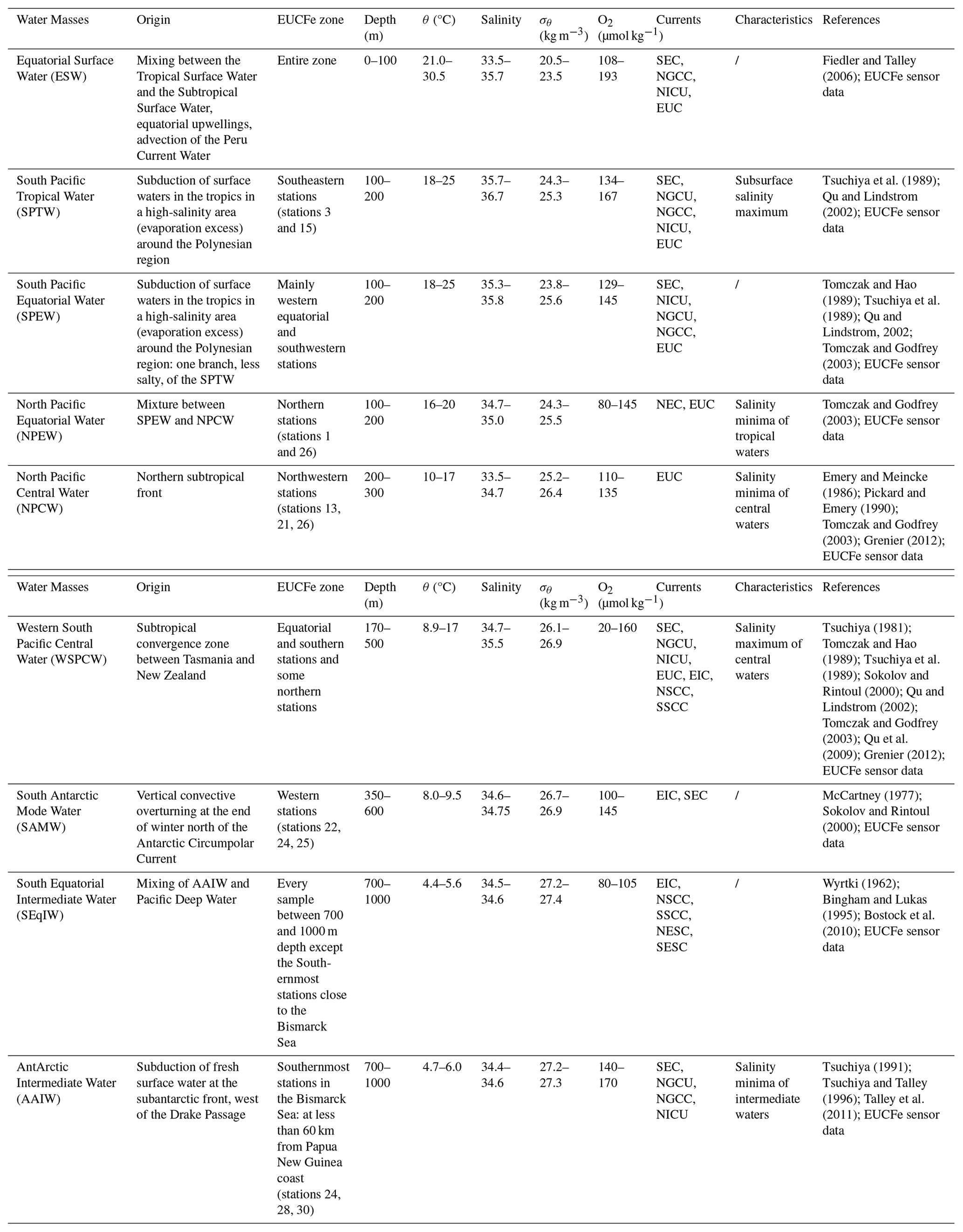

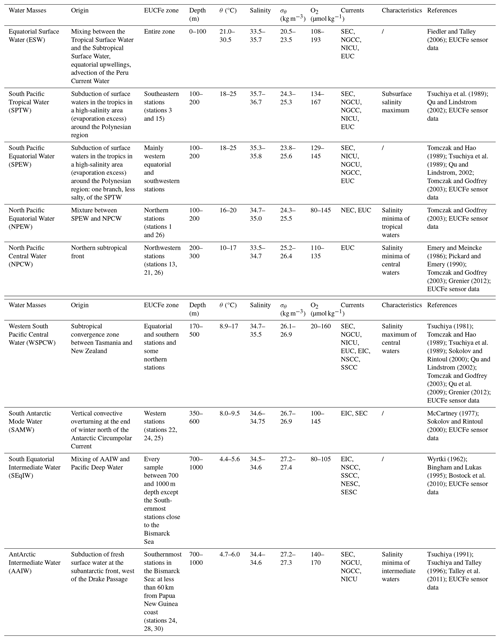

Table 1 Water masses identified during the EUCFe cruise, with their characteristics in the study area: origin, depth, potential temperature (θ, °C), salinity, potential density anomaly (σ_θ, kg m⁻³) and dissolved oxygen concentration (O₂, µmol kg⁻¹). Where the currents flow is specified. Currents acronym meanings are available in Fig. 1, except for the North Equatorial Subsurface Current (NESC), the South Equatorial Subsurface Current (SESC) and the New Ireland Coastal Undercurrent (NICU).

In the equatorial Pacific Ocean between 140° E and 140° W, at least 9 different water masses can be observed in the upper 1000 m of the water column. Their θ, S and [O₂] characteristics are shown in Fig. 2 and reported in Table 1. The upper 100 m are mainly composed of the Equatorial Surface Water (ESW), characterized by high temperatures and oxygen concentrations. ESW is mainly formed from two water masses (Tropical Surface Water (TSW) and Subtropical Surface Water (STSW)). Those are formed in the tropics where evaporation exceeds precipitation and then transported toward the equator by the North and South subtropical gyres. Due to mixing with upwelled waters, ESW is colder than TSW and STSW (Fiedler and Talley, 2006). Between 100 and 200 m, there are three water masses, from the saltiest to the freshest: the South Pacific Tropical Water (SPTW), the South Pacific Equatorial Water (SPEW), the North Pacific Equatorial Water (NPEW) (Tsuchiya et al., 1989; Lacan and Jeandel, 2001; Grenier et al., 2013). The SPTW originates from surface waters subduction in the tropical South Pacific, a high-salinity area with excess evaporation (Tsuchiya et al., 1989). The SPEW is a less salty version of the SPTW and the prevailing water mass around the equator at these depths. It is the major constituent of the upper part of the EUC (σ_θ<25.6 kg m⁻³) (Lacan and Jeandel, 2001; Tomczak and Godfrey, 2003; Grenier et al., 2011; Grenier, 2012). The NPEW is formed by mixing of the SPEW and the North Pacific Central Water (NPCW) (Tomczak and Godfrey, 2003). Between 200 and 500 m depth, central waters, defined by a linear region on temperature-salinity diagrams, are found (Pollard et al., 1996; Stramma and England, 1999; Tomczak and Godfrey, 2003). The Western South Pacific Central Water (WSPCW), formed in the subtropical convergence zone between Tasmania and New Zealand, is the major constituent of the lower part of the EUC (σ_θ>25.6 kg m⁻³) (Tomczak and Hao, 1989; Grenier et al., 2011; Grenier, 2012). WSPCW is also the predominant water mass at these depths in the study area. The North Pacific Central Water (NPCW) is formed in the northern subtropical front (Tomczak and Godfrey, 2003). NPCW is found in the northern part of the study area. Between 350 and 600 m, there is also the South Antarctic Mode Water (SAMW), a water mass formed by vertical convective overturning at the end of the winter north of the Antarctic Circumpolar Current (McCartney, 1977; Sokolov and Rintoul, 2000). The SAMW is often associated with the Antarctic Intermediate Water (AAIW), a deeper water mass. Both water masses, SAMW and AAIW, are found in the western part of the study area. Between 600 and 1000 m, two intermediate waters can be identified: the Equatorial Intermediate Water (EqIW) and the AAIW. Some scientists refer to EqIW as part of the Antarctic Intermediate Water (AAIW) (Yuan and Talley, 1992; Talley, 1999, 2008; Qu and Lindstrom, 2004). In this article, the distinction between the EqIW and AAIW is relevant for studying key parameters such as oxygen, nutrient concentrations and salinity along the equator. The AAIW is formed by subduction of fresh surface water at the subantarctic front, west of the Drake Passage (Tsuchiya, 1991; Talley et al., 2011). The EqIW is a mixing of AAIW and Pacific Deep Water (formed without contact with the atmosphere by Antarctic Bottom Water, Atlantic Deep Water and AAIW mixing) (Tomczak and Godfrey, 2003; Bostock et al., 2010). It constitutes the predominant water mass at these depths in the study region.

3 Sampling and analytical procedures

Sampling and analytical procedures have been previously described (Radic et al., 2011; Labatut et al., 2014). They are summarized below.

Seawater was sampled from surface to 1000 m depth using acid cleaned Go-Flo bottles (12 L) mounted on a trace metal rosette equipped with a CTD, lent by the University of Victoria (Canada). Sample filtration was performed onboard in a homemade plastic room pressurized with filtered air, with acid-cleaned Nuclepore™ membranes (0.4 µm pore size, 90 mm diameter) housed in Teflon filter holders (Savillex™). After filtration, 10 L of filtered seawater were stored in acid-cleaned polyethylene containers and membranes were stored in acid-cleaned Petri dishes.

Samples were processed and analyzed at the LEGOS laboratory (Observatoire Midi-Pyrénées, Toulouse, France) between 2009 and 2012. All chemical procedures were conducted in a trace-metal-clean laboratory under an ISO4 laminar flow hood, using high purity reagents and acid cleaned labware.

Particles were fully digested in a mixture of 5 M HCl, 2.1 M HNO₃, and 0.6 M HF at 130 °C for 3 h. To verify the completeness of the digestion, selected filters were re-digested, confirming no particulate Fe (PFe) remained. Aliquots (2 %) were reserved for Al concentration measurements using an Element-XR HR-ICP-MS. A ⁵⁷Fe-⁵⁸Fe double spike was added to the remaining 98 % of the digested material and to filtered seawater, in preparation for isotopic analyses. Dissolved iron was preconcentrated from filtered seawater on a NTA Superflow resin, at pH = 1.8. Fe was purified from both types of samples with AG1-X4 anionic resin. Iron isotopic compositions and concentrations were measured with a Neptune MC-ICP-MS.

Uncertainties are reported at a 95 % confidence level throughout this article. For Fe concentrations and isotope measurements on the Neptune, the total procedural recovery was 93 ± 25 % for PFe and 86 ± 33 % for DFe. The total procedural blanks were 0.74 ± 1.17 ng (2 SD) for DFe and 7.47 ± 1.09 ng (2 SD) for PFe. This amounts to 0.5 % and 0.6 % of the samples' average Fe content for DFe and PFe, respectively and 2.8% and 9.7 % for the sample with the smallest Fe content for DFe and PFe, respectively. For DFe, the filtered seawater from a sample was divided into several aliquots, then each was processed individually (including different double spiking, preconcentration and purification). For PFe, each sample, i.e., membrane, was first digested (no division of the membrane before digestion), then the digested sample was divided into several aliquots, and each was processed individually (including different double spiking and purification). In some instances, duplicate samples are taken at sea, from the same cast. These replicates are termed “Go-Flo replicates” in the Table A1 in the Appendix. Repeatability was 8 % for DFe concentrations, 4 % for PFe concentrations, 0.05 ‰ for δ⁵⁶DFe and 0.04 ‰ for δ⁵⁶PFe. This level of precision is better than the long-term external precision of 0.07 ‰, determined from repeated analyses of an in-house “ETH Hematite” isotopic standard. As a result, uncertainties for δ⁵⁶Fe data are reported as either ±0.07 ‰ or the internal measurement uncertainty (2 standard errors), whichever is larger.

The LEGOS Fe isotope protocol has been validated through intercalibration and intercomparison exercises (Boyle et al., 2012; Conway et al., 2016) and detailed in Lacan et al. (2008, 2010, 2021). Accuracy (referring to the two concepts of trueness and precision) of elemental concentrations measured by HR-ICP-MS was regularly verified using the certified SLRS-5 river water material and through intercalibration exercises (Yeghicheyan et al., 2013, 2019).

4 Results

Concentrations and isotopic compositions of DFe and PFe in seawater are reported in Table 2. Previously published data from four stations (14, 24, 28 and 30) are included here for clarity (Radic et al., 2011; Labatut et al., 2014). All Fe concentrations, Fe isotopic compositions, temperature, salinity, oxygen data and an intercalibration report, have been included in the GEOTRACES Data Product. They are also available on the SEANOE open data repository (Lacan et al., 2025).

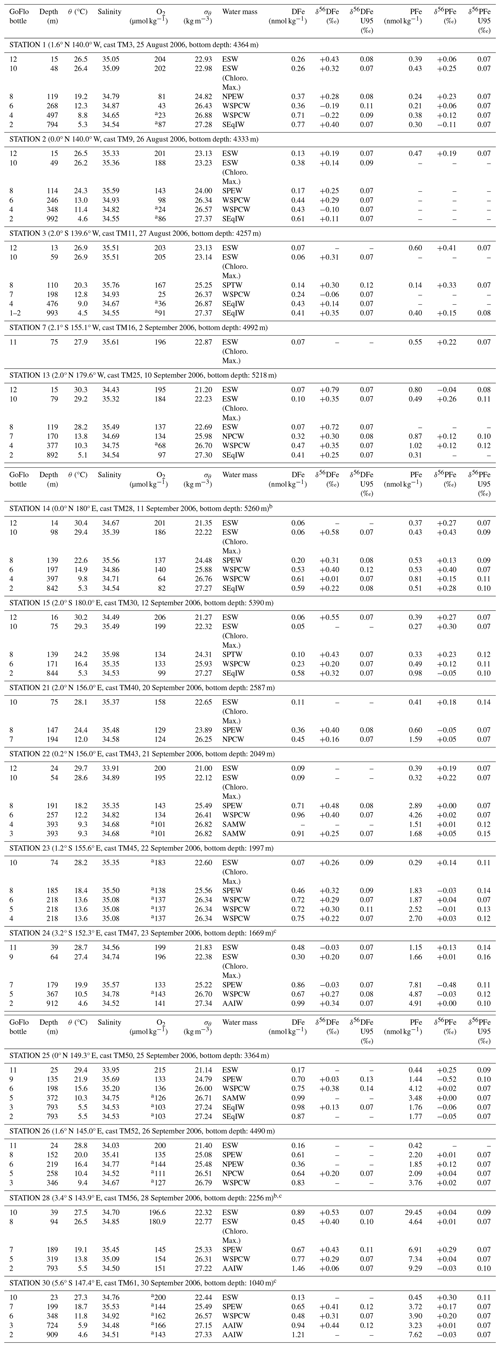

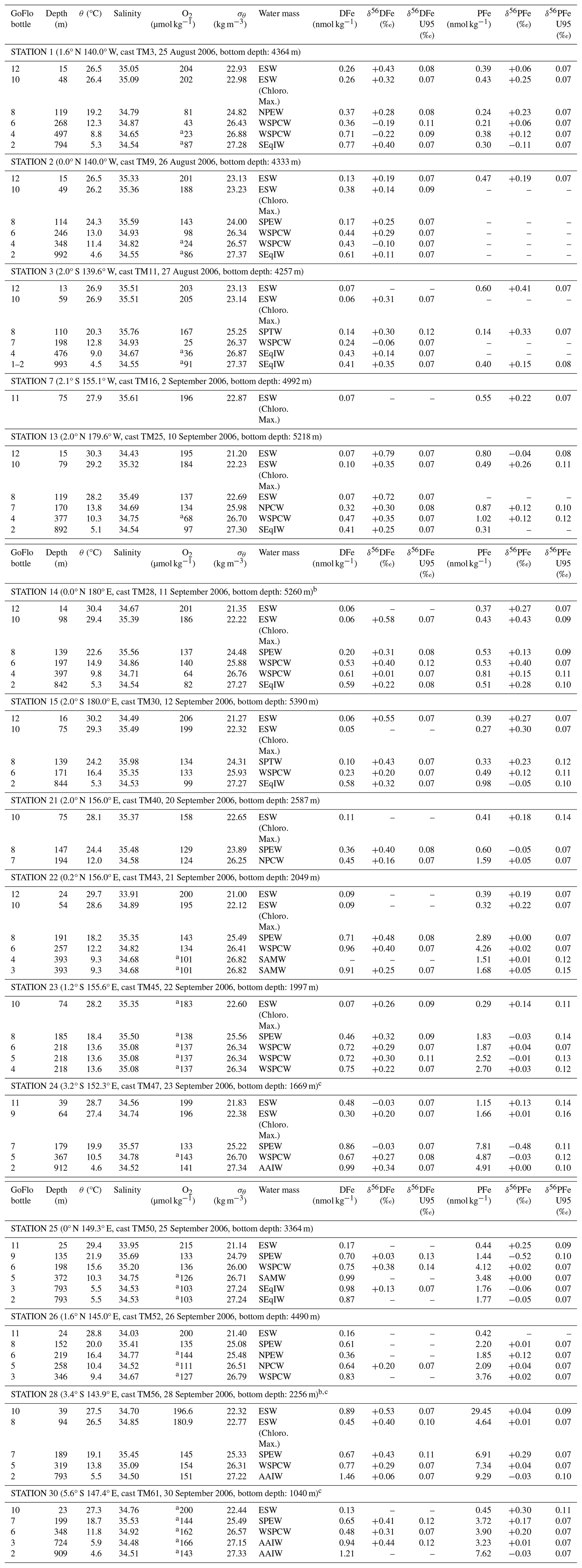

Table 2 Location, depth, hydrological properties, concentration and isotopic composition of dissolved and particulate Fe (DFe and PFe). Concentration relative uncertainties are 8.0 % for DFe and 4.3 % for PFe (95 % confidence level). U95 stands for measurement uncertainty at the 95 % confidence level. For most samples, dissolved O₂ concentration was measured in the samples onboard. When direct measurements were not available, as indicated by the superscripted “a”, oxygen concentrations from the oxygen sensor on the rosette were used following calibration with in situ data. The superscripted “b” and “c” indicate data previously published by Radic et al. (2011) and Labatut et al. (2014), respectively. ESW: Equatorial Surface Water; SPTW: South Pacific Tropical Water; SPEW: South Pacific Equatorial Water; NPEW: North pacific Equatorial Water; NPCW: North Pacific Central Water; WSPCW: Western South Pacific Central Water; SAMW: South Antarctic Mode Water; SEqIW: South Equatorial Intermediate Water; AAIW: Antarctic Intermediate Water; Chloro. Max: Chlorophyll Maximum layer.

Two distinct groups of stations emerge from these observations. These are the western equatorial Pacific and central equatorial Pacific. In the western equatorial Pacific, PFe concentrations were significantly higher, approximately seven times larger, than typical open ocean values. This group includes stations 21, 22, 23, 24, 25, 26, 28 and 30. In the central equatorial Pacific, PFe concentrations were mostly typical of open ocean values. This group includes stations 1, 2, 3, 7, 13, 14 and 15. Data for both areas are shown in Figs. 3 and 4.

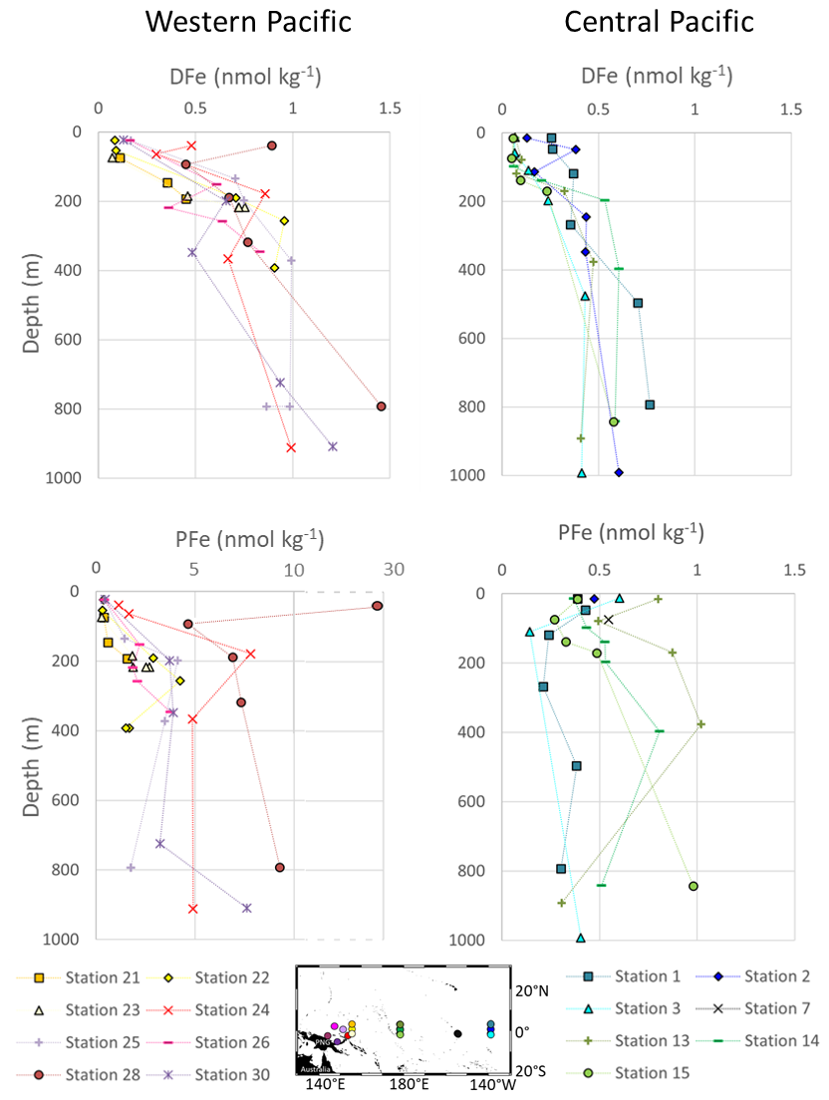

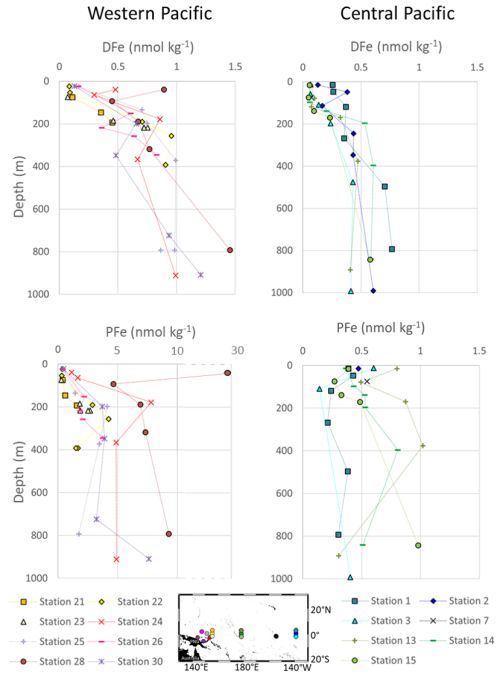

Figure 3 Profiles of concentrations of DFe and PFe in nmol kg⁻¹ in the western equatorial and central equatorial Pacific. For each station, the error bars are smaller than the symbols for Fe concentrations: on average 8 % for DFe and 4 % for PFe. Stations 14 and 28 were previously published by Radic et al. (2011) and stations 24, 28 and 30 by Labatut et al. (2014). The x-axis is broken to show all PFe concentrations from western equatorial Pacific stations.

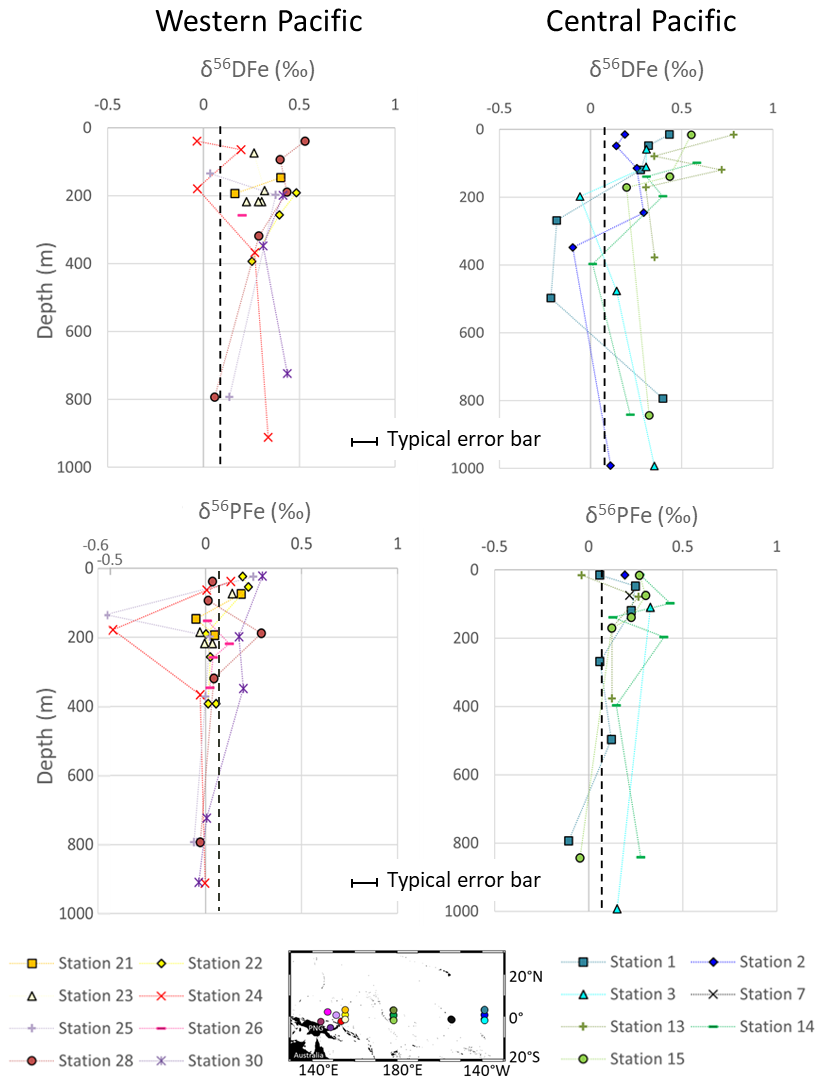

Figure 4 δ⁵⁶DFe and δ⁵⁶PFe profiles in the western equatorial and central equatorial Pacific. The black dashed line indicates the crustal value, +0.07 ‰ (Poitrasson, 2006). Individual error bars are not shown for clarity, but typical uncertainty (±0.07 ‰) is indicated by the scale bar.

4.1 Iron concentrations

DFe and PFe concentrations ranged from 0.05 to 1.46 nmol kg⁻¹ and from 0.14 to 29.45 nmol kg⁻¹, respectively.

A few common features in Fe concentration profiles can be identified across stations from the surface to 1000 m. (i) With the exception of station 28 located near the mouth of the Sepik River, lowest concentrations were found near the surface, mostly in the chlorophyll maximum layer, where biological uptake depletes the concentration of bioavailable Fe. (ii) From the surface to 200 m depth, Fe concentrations tended to increase. Deeper than 200 m, the profiles became more variable, with no uniform trend across stations. (iii) Stations 3, 13, 14 and 15 displayed typical open ocean, nutrient like, DFe profiles. (iv) The particulate iron (PFe) fraction predominated over the dissolved fraction (DFe), accounting on average for 80 % mol mol⁻¹ of total iron (TFe) at western equatorial Pacific stations (140–156° E) and 66 % mol mol⁻¹ at central equatorial Pacific stations (180° E–140° W) (Fig. A1 in the Appendix).

Slemons et al. (2010, 2012) measured DFe and PFe concentrations by FIA during the same cruise. All data were of the same order of magnitude and ranged similarly. However, our data were almost systematically slightly lower (with a mean difference of 0.35 ± 0.44 nmol kg⁻¹ for DFe and 0.35 ± 0.90 nmol kg⁻¹ for PFe). In addition, EUCFe DFe and PFe concentration data are in good agreement with data published in the same area (John et al., 2018; Marsay et al., 2018; Zheng and Sohrin, 2019; Cohen et al., 2021; Sarthou et al., 2025).

4.2 Iron isotopic compositions

The isotopic signatures of dissolved (δ⁵⁶DFe) and particulate Fe (δ⁵⁶PFe) ranged from −0.22 ‰ to +0.79 ‰ and −0.52 ‰ to +0.43 ‰, respectively (Fig. 4).

Across all stations, 85 % of the samples had isotopic compositions of dissolved iron (δ⁵⁶DFe) higher than the upper continental crust (UCC) reference value of +0.07 ‰ (Poitrasson, 2006). δ⁵⁶DFe of western equatorial Pacific stations ranged from −0.03 ‰ to +0.53 ‰, with an average of +0.28 ± 0.30 ‰ (2 SD, n=27) and showed no systematic variation with depth or location. At the central equatorial Pacific stations, δ⁵⁶DFe ranged from −0.22 ‰ to +0.79 ‰, with an average of +0.27 ± 0.45 ‰ (2 SD, n=32). The surface layer exhibited relatively heavy isotopic signatures (around +0.5 ‰), which generally decreased with depth, reaching values around −0.2 ‰ at approximately 400 m. Below this depth, between 800 and 1000 m, δ⁵⁶DFe values increased again, to +0.4 ‰.

The isotopic compositions of particulate iron (δ⁵⁶PFe) at the western equatorial Pacific stations, +0.03 ± 0.32 ‰ (2 SD, n=39) on average, were remarkably homogeneous and remained close to the UCC value, except for two samples from stations 24 and 25. At the central equatorial Pacific stations, δ⁵⁶PFe were slightly more variable, from −0.11 ‰ to +0.43 ‰ (with an average of +0.19 ± 0.27 ‰, 2 SD, n=26), and 81 % of the samples were heavier relative to the UCC.

EUCFe data can be compared with three nearby cruises: GEOTRACES GP16 (2013), a zonal cruise along 10° S, from 75° W to 155° W, GEOTRACES GP15 (2018), a meridional section along 150° W with one station located at the equator and GEOTRACES GP19 (2015), a meridional section along 170° W with one station located at the equator (Fig. 1). In the equatorial Pacific area, the circulation is highly zonal, and previous studies have shown that the water mass geochemistry at 12° S is not directly linked to that of the equatorial band (Lacan and Jeandel, 2001). This prevents the use of GP16 data and limits that of GP15 and GP19 to their equatorial stations (stations 29 and 21, respectively). These GP15 and GP19 Fe isotope data have not yet been published but are available in GEOTRACES Intermediate Data Product 2025 (GEOTRACES Intermediate Data Product Group, 2025). Figure 5 displays the GP15 station 29 and GP19 station 21 δ⁵⁶DFe profiles with the closest equatorial EUCFe stations, stations 2 and 14 (EUCFe station 7 is excluded from this comparison because it only reports a single data point at 75 m). Given the time lag between the three cruises (up to 12 years), and the thousand km between the stations, the upper 200 m are excluded from this comparison due to potential variabilities. At four depths, approximately 200, 400, 800 and 1000 m, δ⁵⁶DFe data from the three cruises can be compared (Fig. 5). These are in excellent agreement. No δ⁵⁶PFe data have been reported for GP15 and GP19.

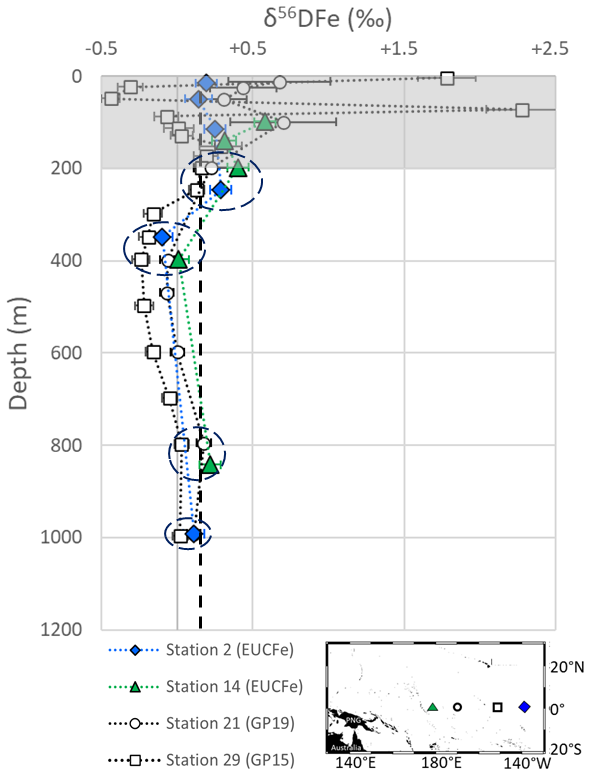

Figure 5 Comparison of δ⁵⁶DFe values from the EUCFe, GP15 and GP19 cruises. The upper 200 m, shaded in gray, are excluded from the comparison. The dashed ellipses show the 4 depths where comparison can be made for δ⁵⁶DFe values. Please note that at 1000 m, values from stations 2, 21 and 29 are close, making station 21 less visible. The black dashed line indicates the crustal value. The GP15 cruise data were produced by M. Sieber and T. Conway, and the GP19 cruise data were produced by Tim Conway, Matthias Sieber and Derek Vance; both datasets are available in the GEOTRACES Data product (GEOTRACES Intermediate Data Product Group, 2025).

5 Discussion

5.1 Influence of external iron inputs in the western equatorial Pacific

Fe concentrations throughout the entire water column in the western equatorial Pacific were approximately twice as high for DFe (0.63 nmol kg⁻¹ compared to 0.30 nmol kg⁻¹, on average) and approximately seven times higher for PFe (3.58 nmol kg⁻¹ compared to 0.49 nmol kg⁻¹, on average) relative to the central equatorial Pacific stations. The particulate Fe (PFe) fraction dominated total Fe (TFe), particularly in the western equatorial Pacific stations, where $\mathrm{PFe}/\mathrm{TFe}$ ratios ranged from 63 % mol mol⁻¹ to 97 % mol mol⁻¹ (Fig. A1). These patterns were documented previously in several studies, and attributed to lithogenic inputs from terrestrial sources, with occasional hydrothermal contributions and minimal input from atmospheric sources (Milliman, 1995; Kineke et al., 2000; Mackey et al., 2002; Slemons et al., 2010; Radic et al., 2011; Labatut et al., 2014).

A box model (Fig. 6) for the region 133° E–177° W, 9° S–15° N was used to investigate the relative importance of possible PFe sources leading to these high concentrations. The model includes PFe transported by oceanic currents, atmospheric deposition and delivered by rivers (notably the Sepik River, with potential deposition to and resuspension from sediments). Particle settling within the water column and hydrothermal sources were neglected.

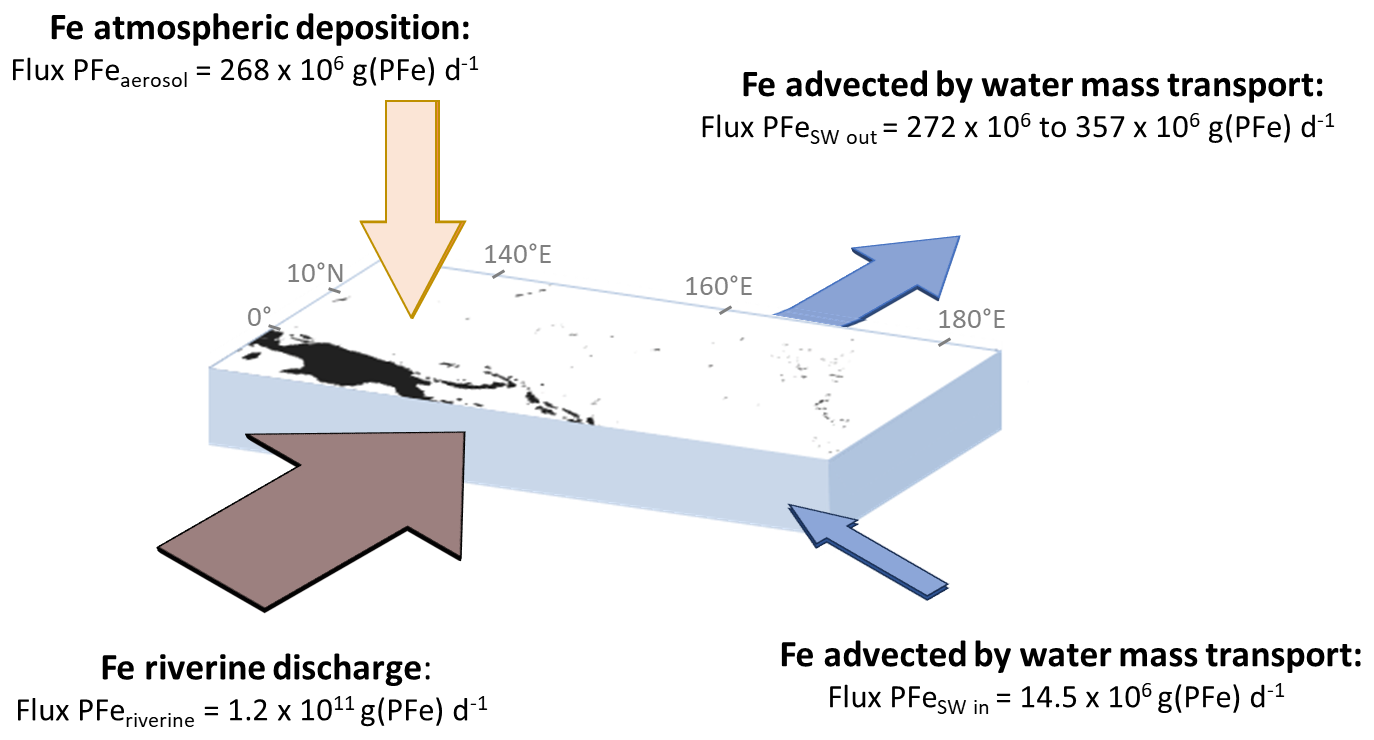

Figure 6 Box model describing PFe inputs and output to the western equatorial Pacific region. Note that although all external sources enter the seawater box, part of them are removed to the sediments.

The transport of water masses in this area, from the surface to a depth of 1000 m, was estimated at 19.4 ± 0.4 Sv (1 SD), based on the flow in Vitiaz Strait during the Austral winter (i.e., the same period as the EUCFe cruise) (Germineaud et al., 2016). The incoming water is assumed to carry a typical open ocean PFe concentration (average value for the upper 1000 m of the water column, station 36, GP16 cruise) of 0.15 ± 0.08 nmol kg⁻¹ (1SD) (Marsay et al., 2018), prior to enrichment within the study area (Fig. 1). The flux of PFe transported by water masses into this area, calculated as the product of these two quantities, is Flux PFe${}_{\mathrm{SW}\mathrm{in}}=\mathrm{14.5}\times {\mathrm{10}}^{\mathrm{6}}$ g(PFe) d⁻¹. The average PFe concentration in this area (stations 21 to 30) ranged between 2.9 and 3.8 nmol kg⁻¹ depending on the calculation method chosen (Table A1). The fluxes derived from these concentrations will be given as a range. This leads to a PFe flux transported out of the area by water masses, Flux PFe_SW out, between 272×10⁶ and 357×10⁶ g(PFe) d⁻¹ (concentration multiplied by 19.4 Sv). In a steady state model, where inputs are balanced by outputs, one or more sources must be contributing approximately between 258×10⁶ and 342×10⁶ g(PFe) d⁻¹ to this area.

Particulate iron atmospheric deposition was estimated using the Fe concentration in aerosols over this region, measured during the same cruise at 3.01 ng m⁻³ (Camin et al., 2025), multiplied by a bulk aerosol deposition velocity. The deposition area shown in Fig. 6, chosen as representative of this region of elevated PFe concentrations, covers approximatively 1.54×10⁷ km² (the box model surface area of 1.6×10⁷ km² minus the New Guinea land area of 0.08×10⁷ km²; Baldacchino, 2024). The bulk aerosol deposition velocity, denoted Vb (m d⁻¹), includes both wet and dry deposition. It can be calculated from the precipitation rate (mm d⁻¹) according to the formula from Kadko et al. (2020), recently updated by He et al. (2025), who used ⁷Be as a proxy for atmospheric deposition:

$$\begin{array}{}\text{(2)}& \mathrm{Vb}=\mathrm{413}\pm \mathrm{22}\times \mathrm{Precipitation}\mathrm{Rate}+\mathrm{1069}\pm \mathrm{71}\end{array}$$

To estimate the precipitation rate, we used the NASA Giovanni data product TRMM to determine the mean daily precipitation rate over the entire region considered in the box model from 20 to 30 September 2006. The mean value was 11.4 ± 6.6 mm d⁻¹ (2 SD) (Table A2). Applying Eq. (2), the bulk aerosol deposition velocity is therefore 5777 m d⁻¹. The resulting atmospheric PFe deposition flux was Flux PFe${}_{\mathrm{aerosol}}=\mathrm{268}\times {\mathrm{10}}^{\mathrm{6}}$ g(PFe) d⁻¹. This estimate accounts for between 78 % and 104 % of the required external sources (Table A1). However as discussed below, this PFe atmospheric deposition flux is orders of magnitudes lower than that delivered by rivers.

Papua New Guinea accounts for 8 % to 10 % of the global export of sediment to the ocean (1.7×10¹⁷ g(sediment) yr⁻¹) (Milliman et al., 1999). The Sepik River and other northern rivers of PNG discharge 8.6×10¹⁴ g(sediment) yr⁻¹ to this study area (Milliman et al., 1999). Assuming that Fe amounts to 5 % w w⁻¹ of the sediment discharge, (the UCC value from Rudnick and Gao, 2014), the estimated riverine discharge of PFe to the western equatorial Pacific is 4.3×10¹³ g(PFe) yr⁻¹, i.e., 1.2×10¹¹ g(PFe) d⁻¹. This estimate accounts for between 35 064 % and 46 556 % of the required external sources (Table A1).

Thus, the riverine PFe flux is 448-fold larger than the atmospheric PFe flux. This flux comparison argues in favor of a contribution dominated by input from rivers. Isotopic signatures provide an additional constraint and also support a riverine source, as the δ⁵⁶PFe values are close to crustal values in this region (Table 2 and Fig. 4), whereas aerosols exhibit a heavier isotopic signature, around +0.3 ‰ (Camin et al., 2025).

Regarding riverine particles, the question of their transport mechanism over such a distance from the coast (∼ 1200 km) arises. The Sepik River and other northern rivers of PNG deliver large sediment loads to the coastal ocean due to factors including intense rainfall from the Inter-Tropical Convergence Zone, a narrow shelf associated with the active margin, the sediment erodibility (geology, human activities) and tectonism (seismic and volcanic activity, relief) (Milliman and Syvitski, 1992). Lithogenic iron (Fe) observed at the western equatorial Pacific stations can be due to direct fluvial inputs, resuspended sediments, isopycnal plumes, and hyperpycnal flows (Kineke et al., 2000; Mackey et al., 2002; Kuehl et al., 2004; Renagi et al., 2010; Slemons et al., 2012). These processes can transport Fe seaward across the slope (Kineke et al., 2000; Kuehl et al., 2004; Renagi et al., 2010). These lithogenic inputs, leading to very significant PFe excess compared to open ocean values, extend throughout the sampled water column (0–1000 m) at all stations in the western equatorial Pacific. Therefore, we discuss these data below as a whole, without distinguishing between different water masses or currents.

At the western equatorial Pacific stations, PFe isotopic compositions are close to the UCC reference value, supporting a predominantly lithogenic origin discussed above (Table 2 and Fig. 4). Only two samples, from stations 24 and 25, exhibit near-zero δ⁵⁶DFe and δ⁵⁶PFe values close to −0.5 ‰, likely reflecting a hydrothermal contribution, as previously suggested by Labatut et al. (2014) for station 24. Northeastern PNG is an active margin with hydrothermal activity (Auzende et al., 2000) with shallow sources able to supply EUC via the NICU (Mackey et al., 2002).

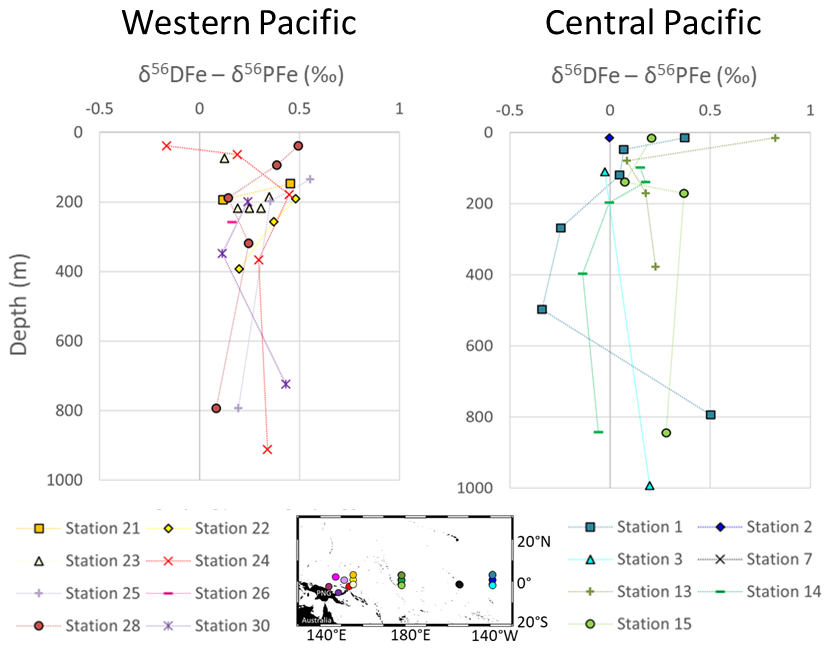

Figure 7 Differences between the dissolved and particulate of iron isotopic compositions (δ⁵⁶DFe − δ⁵⁶PFe) from the surface to 1000 m depth in the western equatorial and central equatorial Pacific.

The isotopic difference between dissolved and particulate Fe, Δ⁵⁶Fe_DFe−PFe, is shown in Fig. 7. Except for one data point at the surface this difference is consistently positive, i.e., DFe is systematically heavier than PFe. This is true for 26 out of 27 data points, including the two data points discussed above with significantly different δ⁵⁶PFe values (attributed to hydrothermal influence). On average this difference is Δ⁵⁶Fe${}_{\mathrm{DFe}-\mathrm{PFe}}=+\mathrm{0.27}\pm \mathrm{0.32}$ ‰ (2 SD, n=27). This systematic difference suggests a mechanistic link between particulate and dissolved Fe pools, associated with an isotopic fractionation. A kinetic isotopic fractionation associated with an unidirectional reaction would lead to a reaction product isotopically lighter than the reactant. In such a hypothesis, PFe being lighter than DFe, this would imply that PFe is produced from DFe (for instance by precipitation). This is totally unlikely given the predominance of lithogenic PFe sources in this area. We therefore exclude the hypothesis of a kinetic fractionation and conclude that there is an equilibrium isotopic fractionation between PFe and DFe. Equilibrium fractionation implies co-occurrence of chemical fluxes from both phases toward the other. In addition, because DFe is heavier than PFe, the processes responsible for the flux from the particulate to the dissolved phase cannot be associated with an Fe reduction process (that would produce lighter DFe, Criss, 1999). This is consistent with the oxygenated water column in this region (Table 2). The PFe to DFe flux is therefore a non-reductive release of dissolved Fe, a process named non-reductive dissolution, NRD, by Radic et al. (2011). The term NRD can refer to dissolution, as well as to other type of processes from the particulate to the dissolved phase, such as desorption. This non-reductive release of dissolved Fe probably reflects processes similar to the reversible scavenging process proposed for Th or rare earth elements (REE) (Bacon and Anderson, 1982; Nozaki et al., 1987; Nozaki and Alibo, 2003). These conclusions have been previously proposed for stations 24, 28 and 30 (Radic et al., 2011; Labatut et al., 2014). The addition of data from five additional western stations reinforces the conclusions drawn from earlier studies and extends the geographic scope of these findings eastward beyond the Bismarck Sea, to as far as 156° E. This confirms the significant role of lithogenic inputs from PNG on the biogeochemistry of the area. These processes govern particulate – dissolved interactions at least up to 1200 km from the source, within the upper 1000 m of the water column.

The non-reductive release of dissolved iron, NRD, at the sediment/water column interface has now been observed in numerous studies as a significant external DFe source. These include the western Pacific (Radic et al., 2011; Labatut et al., 2014; this study), the northwest Atlantic (Conway and John, 2014), the northeast Atlantic (Klar et al., 2018), the southeast Atlantic (Conway et al., 2016), the Southern Ocean (Abadie et al., 2017; Tian et al., 2023) and in the southeast Pacific (John et al., 2018). In the water column, exchange fluxes between particulate and dissolved phases, including non-reductive release of dissolved iron from the particles, have also been proposed in several other studies (Radic et al., 2011; Abadie et al., 2017; Fitzsimmons et al., 2017; John et al., 2018). In all cases, at the sediment/seawater interface and within the water column, the exact processes involved remain unclear. Desorption and ligand-promoted dissolution have been suggested (Abadie et al., 2017; John et al., 2018; Homoky et al., 2021). Additionally, direct comparison of DFe and total PFe isotopic compositions has inherent limitations, as it does not allow us to study the distinct processes related to different PFe phases (lithogenic, biogenic, Fe oxyhydroxides). Those PFe phases are likely not equally involved in particulate – dissolved exchanges. Nevertheless, our analytical approach employs total digestion to guarantee the absence of artifactual isotopic fractionation. The regional geochemical characteristics establish that excess PFe is predominantly lithogenic (Fig. 6), with excess DFe correspondingly derived from this source. Although lithogenic iron is conventionally considered refractory, neodymium isotope studies have shown that lithogenic phases do dissolve, even if in small proportions (Lacan and Jeandel, 2005; Rousseau et al., 2015). The excess DFe in the area, from 0.30 to 0.63 nmol kg⁻¹, affects 19.4 Sv (Germineaud et al., 2016). This leads to a required flux of ∼ 540 g(DFe) s⁻¹. The riverine PFe discharge to this area is about 1.2×10¹¹ g(PFe) d⁻¹. Therefore, the dissolution of only 0.04 % of the PFe discharge would be sufficient to account for the observed DFe increase. This very low dissolution rate makes it entirely plausible that the excess DFe originates from the dissolution of lithogenic PFe.

5.2 Iron sources and biogeochemical dynamics in the central equatorial Pacific

In the central equatorial Pacific, the data are discussed within each of the five density layers defined in Sect. 2 in order to take into account different water masses and dominant currents. Western stations are included in the figures solely to illustrate potential sources to this central Pacific area. To facilitate interpretation, the δ⁵⁶Fe color scales are different for each density layer.

5.2.1 Surface layer, the chlorophyll maximum layer (<120 m; < 23.8 kg m⁻³)

Having both dissolved and particulate iron data in the open ocean surface layer, far from continental inputs, provides an opportunity to quantify isotopic fractionation associated with biological uptake, i.e., consumption of dissolved Fe by phytoplankton and its consequent transfer to the particulate pool. We focus on the chlorophyll maximum layer (found between 10 and 100 m, based on fluorescence data shown in Fig. A2), also called the deep chlorophyll maximum (DCM), where the phytoplanktonic contribution to sampled particles is likely to be large. During the EUCFe cruise, the phytoplankton community was studied at station 2 at a depth of 10 m (Marchetti et al., 2010), and in the chlorophyll maximum layer at station 2, station 25, and at two other stations lacking iron isotope measurements (0, 165° E and 0, 170° W) (Johnson et al., 2010). The cyanobacteria Prochlorococcus and Synechococcus dominate this community, followed by small pennate diatoms such as C. closterium and N. bicapitata (Johnson et al., 2010; Marchetti et al., 2010). This observation is consistent with previous studies in this equatorial upwelling region, which report a predominantly cyanobacteria-based community (Chavez et al., 1990; Landry et al., 1996). Unicellular diazotrophic cyanobacteria were also identified throughout the cruise, primarily picocyanobacteria, while the larger Trichodesmium was found only in coastal waters (Bonnet et al., 2009).

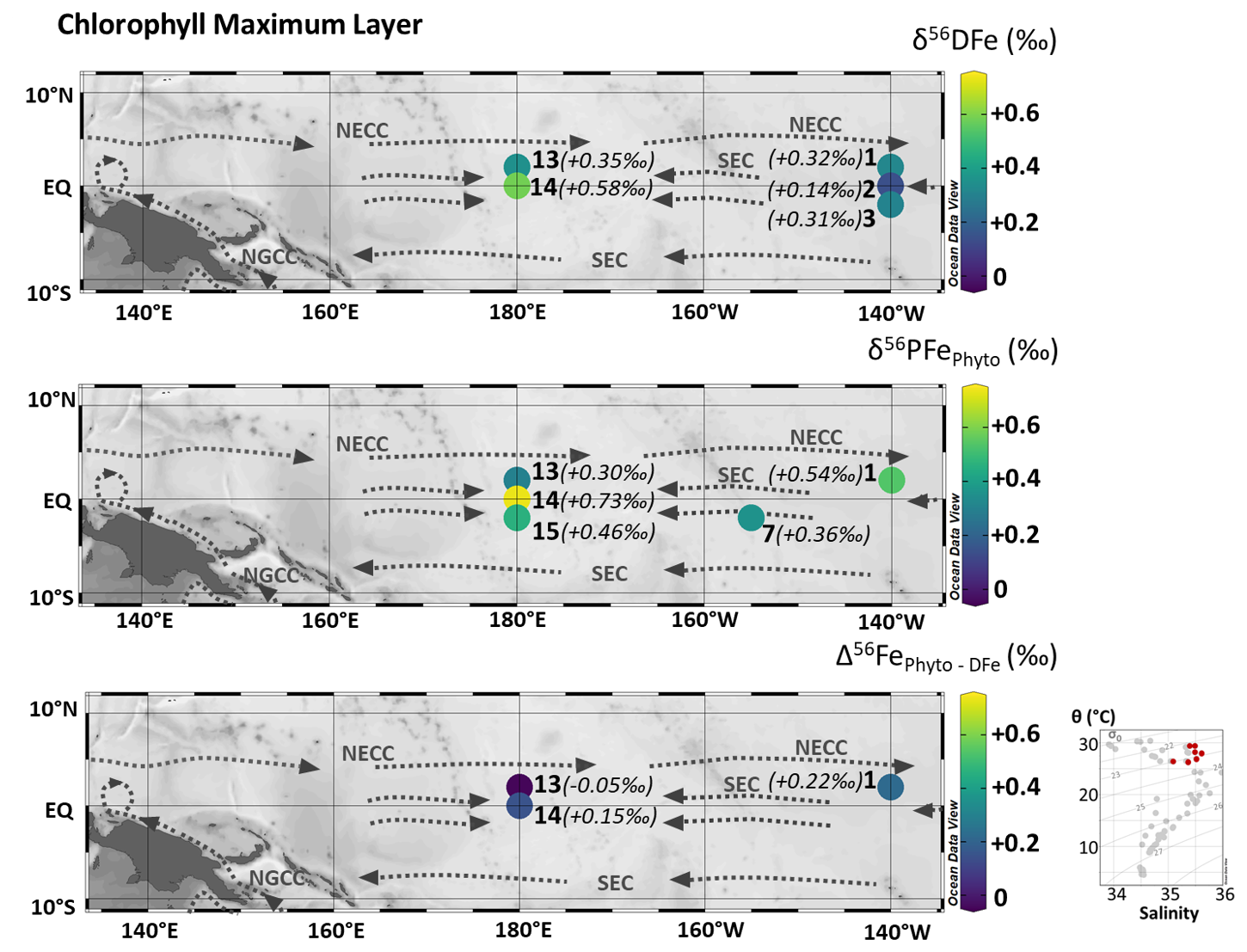

Figure 8 From the top to bottom, samples collected in the chlorophyll maximum layer, maps of δ⁵⁶DFe (‰), δ⁵⁶PFe_Phyto (‰), and the difference between δ⁵⁶PFe_Phyto and δ⁵⁶DFe. Station numbers are displayed next to the colored dots on the map. Main currents are represented: South Equatorial Current (SEC), North Equatorial CounterCurrent (NECC) and New Guinea Coastal Current (NGCC). In the bottom right corner, potential temperature (θ, °C) and salinity (S) of EUCFe samples. Samples in this chlorophyll maximum layer are shown in red. Values are shown in parentheses due to the large range, which limits color scale readability. Their measurement uncertainties can be found in Sect. 5.2.1 and Table 2. This figure was produced using Ocean Data View (Schlitzer, 2025).

PFe can be composed of lithogenic, biogenic, and chemogenic fractions. Chemogenic particles are formed by chemical reactions such as Fe oxyhydroxide precipitations and are frequently referred to as “authigenic”. However, this term lacks precision as it merely designates material formed in situ, which could theoretically include biogenic fractions. Assuming Aluminum (Al) is entirely lithogenic (Murray et al., 1993; Frank et al., 1995; McManus et al., 1999; Cardinal et al., 2001; Dammshäuser, 2012), the lithogenic fraction of the particulate iron, [PFe]_lithogenic, is estimated by:

$$\begin{array}{}\text{(3)}& {\left[\mathrm{PFe}\right]}_{\mathrm{lithogenic}}={\left[\mathrm{PAl}\right]}_{\mathrm{measured}}\times {\left({\displaystyle \frac{\left[\mathrm{PFe}\right]}{\left[\mathrm{PAl}\right]}}\right)}_{\mathrm{reference}\mathrm{material}}\end{array}$$

where [PAl]_measured is the measured particulate Al concentration and $\left[\mathrm{PFe}\right]/[\mathrm{PAl}{]}_{\mathrm{reference}\mathrm{material}}$ is the ratio in a reference lithogenic material. Surface currents in our studied area are mainly eastward in the western Pacific and westward in the central Pacific. We therefore looked for reference lithogenic material on both the western and eastern boundaries of the Pacific basin. The $\mathrm{Fe}/\mathrm{Al}$ ratios of igneous rocks from Papua New Guinea (Tiangang et al., 2024) and of igneous rocks from the Galapagos Islands and the southwestern Andes basins of Peru (Wilson et al., 2022; Ccanccapa-Cartagena et al., 2023) are equal to 0.502 mol mol⁻¹ and 0.499 mol mol⁻¹ respectively. Given the similarity of these ratios, we utilized an average value of 0.50 mol mol⁻¹ for all samples.

In the chlorophyll maximum layer, we found that an average of 42 % mol mol⁻¹ of particulate iron (PFe) is lithogenic (Table A3). The remaining 58 % mol mol⁻¹ can be attributed to biogenic and chemogenic sources. The chemogenic fraction cannot be distinguished and quantified in the present study (this would have required, for example, direct measurements of phytoplankton stoichiometry and phosphorus), and there is no known isotopic signature specific to this chemogenic fraction in the literature (which is essential for Eq. 4). Because we are looking at samples taken in the chlorophyll maximum, we will assume in the following that the chemogenic Fe is negligible. This assumption is supported by observations reporting minimum chemogenic contribution in the chlorophyll maximum layer (Sofen et al., 2023) and modelling work estimating that the biogenic fraction dominates in the central equatorial Pacific (Tagliabue et al., 2023). We also assume that biogenic Fe is entirely phytoplanktonic Fe (PFe_Phyto) and assuming mass conservation, δ⁵⁶PFe_Phyto can be estimated from:

$$\begin{array}{}\text{(4)}& \begin{array}{rl}& [\mathrm{PFe}{]}_{\mathrm{Phyto}}{\mathit{\delta }}^{\mathrm{56}}{\mathrm{PFe}}_{\mathrm{Phyto}}\approx \\ & \left[\mathrm{PFe}\right]{\mathit{\delta }}^{\mathrm{56}}\mathrm{PFe}-[\mathrm{PFe}{]}_{\mathrm{lithogenic}}{\mathit{\delta }}^{\mathrm{56}}{\mathrm{PFe}}_{\mathrm{lithogenic}}\end{array}\end{array}$$

where [PFe] and δ⁵⁶PFe are the measured particulate Fe concentration and isotopic composition. The lithogenic PFe is assumed to be characterized by average crustal signature δ⁵⁶PFe${}_{\mathrm{lithogenic}}=+\mathrm{0.07}\pm \mathrm{0.02}$ ‰ (Poitrasson, 2006). The estimated isotope compositions of phytoplanktonic PFe are shown in Fig. 8 and Table A3. δ⁵⁶PFe_Phyto varies from +0.30 ± 0.12 ‰ to +0.73 ± 0.17 ‰. Propagation of uncertainties for Fe and Al concentrations and Fe isotopes in both the samples and the reference material implies uncertainties for δ⁵⁶PFe_Phyto significantly higher than those of our initial data.

At three stations, the isotope data are available for both the dissolved and the phytoplanktonic iron. This allows an estimate of isotope fractionation associated with phytoplankton uptake. Assuming two simple isotopic models, either an equilibrium fractionation model (implying bidirectional chemical reactions) or a kinetic fractionation model in which phytoplankton is the instantaneous product of DFe (implying unidirectional chemical reactions), the isotopic fractionation can be calculated, with the same simple equation (Hayes, 2004):

$$\begin{array}{}\text{(5)}& {\mathrm{\Delta }}^{\mathrm{56}}{\mathrm{Fe}}_{\text{Phyto-DFe}}={\mathit{\delta }}^{\mathrm{56}}{\mathrm{PFe}}_{\mathrm{Phyto}}-{\mathit{\delta }}^{\mathrm{56}}\mathrm{DFe}\end{array}$$

This leads to Δ⁵⁶Fe${}_{\text{Phyto-DFe}}=+\mathrm{0.22}\pm \mathrm{0.21}$ ‰ at station 1, −0.05 ± 0.14 ‰ at station 13 and +0.15 ± 0.19 ‰ at station 14, with a grand average value of Δ⁵⁶Fe${}_{\text{Phyto-DFe}}=+\mathrm{0.11}\pm \mathrm{0.28}$ ‰ (2 SD, n=3) (Fig. 8 and Table A3). Given the uncertainties, we cannot conclude that there is isotopic fractionation associated with biological uptake, but our data indicate that if it exists, it is small and lies between −0.17 ‰ and +0.39 ‰ (+0.11 ± 0.28) at a 95 % confidence level.

These results can be compared with previous studies. Some suggest preferential uptake of light and others of heavy isotopes. From the same cruise, Radic et al. (2011) found Δ⁵⁶Fe_Phyto-DFe = $-\mathrm{0.25}\pm \mathrm{0.10}$ ‰ (2 SD) with one model and $-\mathrm{0.13}\pm \mathrm{0.11}$ ‰ (2 SD) with a second model. While the first model was based solely on DFe data, the second incorporated PFe data assuming PFe was exclusively phytoplanktonic, whereas our results indicate a substantial lithogenic contribution at the open ocean stations (Table A3). Additional data and novel methodological approaches have refined these estimates. Off New Zealand, during the annual spring bloom, Ellwood et al. (2015) estimated an isotopic fractionation of −0.54 ‰. In that study the isotopic signatures of the particles were used, but not corrected for their lithogenic fractions, despite proximity to the mainland, and fractionation uncertainties were not discussed. In two Antarctic coastal polynyas, preferential uptake of light isotopes was suggested based on water mass DFe signatures alone (without PFe data), with isotopic fractionation of −1 ‰ ($\mathit{\alpha }={\mathit{\delta }}^{\mathrm{56}}{\mathrm{Fe}}_{\mathrm{Biomass}}/{\mathit{\delta }}^{\mathrm{56}}{\mathrm{Fe}}_{\mathrm{Seawater}}=\mathrm{0.999}$) (Sieber et al., 2021) and of −1.8 ‰ to −1 ‰ (α=0.9982 to 0.9990) (Tian et al., 2023). However, both studies highlighted the co-occurrence of multiple mechanisms and, therefore, of several isotopic fractionation processes in the surface layer. Ellwood et al. (2020) conducted a study using both DFe and PFe isotope data in a 1-D model, and found isotopic fractionation values for biological uptake ranging from −1 ‰ (in a simplified model considering only biological uptake) to −0.6 ‰ when using a more sophisticated model representing additional processes (regeneration, scavenging and complexation) in a cold-core eddy in the Southern Ocean. Again, fractionation uncertainties were not discussed in these three studies. Finally, in the North Atlantic, two studies suggested a positive fractionation (contrasting with the previous studies) based on water mass DFe signatures (no PFe data) and without quantification (Conway and John, 2014; Klar et al., 2018). Culture experiments examining isotopic fractionation by several diatom and a coccolithophore species (not the dominant species in our samples; Johnson et al., 2010; Marchetti et al., 2010) revealed “no clear relationship to species, growth rate, or Fe concentration” for biological uptake, possibly due to the sensitivity of kinetic isotope effects (John et al., 2024). During these experiments, biological uptake induced smaller fractionation (−1.3 ‰ to +0.60 ‰, mean +0.20 ± 0.38 ‰, 1 SD, n=62) compared to abiotic processes (approximately −4 ‰ to +5 ‰). These laboratory observations align with our in situ observations, although a comparison is not straightforward because iron acquisition processes are very different in cyanobacteria (Sutak et al., 2020). These authors suggested that seawater δ⁵⁶Fe may not be greatly impacted by biological uptake (John et al., 2024); a conclusion consistent with the findings of Lacan et al. (2008), Radic et al. (2011) and this study.

The differences in biological fractionation probably reflect variations in phytoplankton community composition, ligand types (John et al., 2024), regional variability, and methodological approaches such as the direct measurement of particles and the consideration of their phases. Potential iron fractionation during biological uptake, if it occurs, may depend on numerous parameters, including species-specific iron acquisition processes (Sutak et al., 2020), as well as pH, ligand, and reductant types, which strongly influence kinetic isotope effects (John et al., 2024). Our study region is particularly challenging in this regard, as it is a cyanobacteria-dominated system where isotopic fractionation processes remain poorly understood (Mulholland et al., 2015; Swanner et al., 2017). Iron isotope fractionation by diazotrophic cyanobacteria has not been investigated, despite these organisms contributing disproportionately to Fe uptake relative to their numerical abundance (Lory et al., 2022). The present analysis does not allow us to draw conclusions regarding a preferential uptake of heavy or light iron isotopes during biological uptake. However, our results confirm that this fractionation is small, likely not larger than a few tenths of a per mil. They align with a previous study, in the Southern Ocean, where fractionation had a small amplitude, $\left|{\mathrm{\Delta }}^{\mathrm{56}}{\mathrm{Fe}}_{\text{Phyto-DFe}}\right|<\mathrm{0.32}$ ‰, with no conclusion about the direction (Lacan et al., 2008), and culture experiments (John et al., 2024). Our analysis emphasizes the importance of taking into account error propagations and lithogenic contributions to the particulate phases, in the chlorophyll maximum in the open ocean.

5.2.2 Subsurface layer (110–220 m; 23.8–25.6 kg m⁻³), upper EUC

The subsurface layer is composed of three water masses: the South Pacific Tropical Water (SPTW) (stations 3 and 15), the South Pacific Equatorial Water (SPEW) (stations 2, 14, 21, 22, 23, 24, 25, 28 and 30) and the North Pacific Equatorial Water (NPEW) (stations 1 and 26) (Fig. 9). At the equator, seawater within SPEW is subject to substantial renewal as it flows eastward from the western Pacific (140° E) to the central equatorial Pacific (140° W) (Tsuchiya et al., 1989; Grenier et al., 2011). This renewal is largely driven by equatorial upwelling which creates divergence in subsurface waters and subsequently generates meridional currents from both the northern and southern subtropical gyres toward the equator. These gyres ventilate the upper Equatorial Undercurrent (U-EUC), contributing approximately 9 Sv of the total 28 Sv contribution at 140° W, accounting for nearly one third of the upper EUC flow (Grenier et al., 2011).

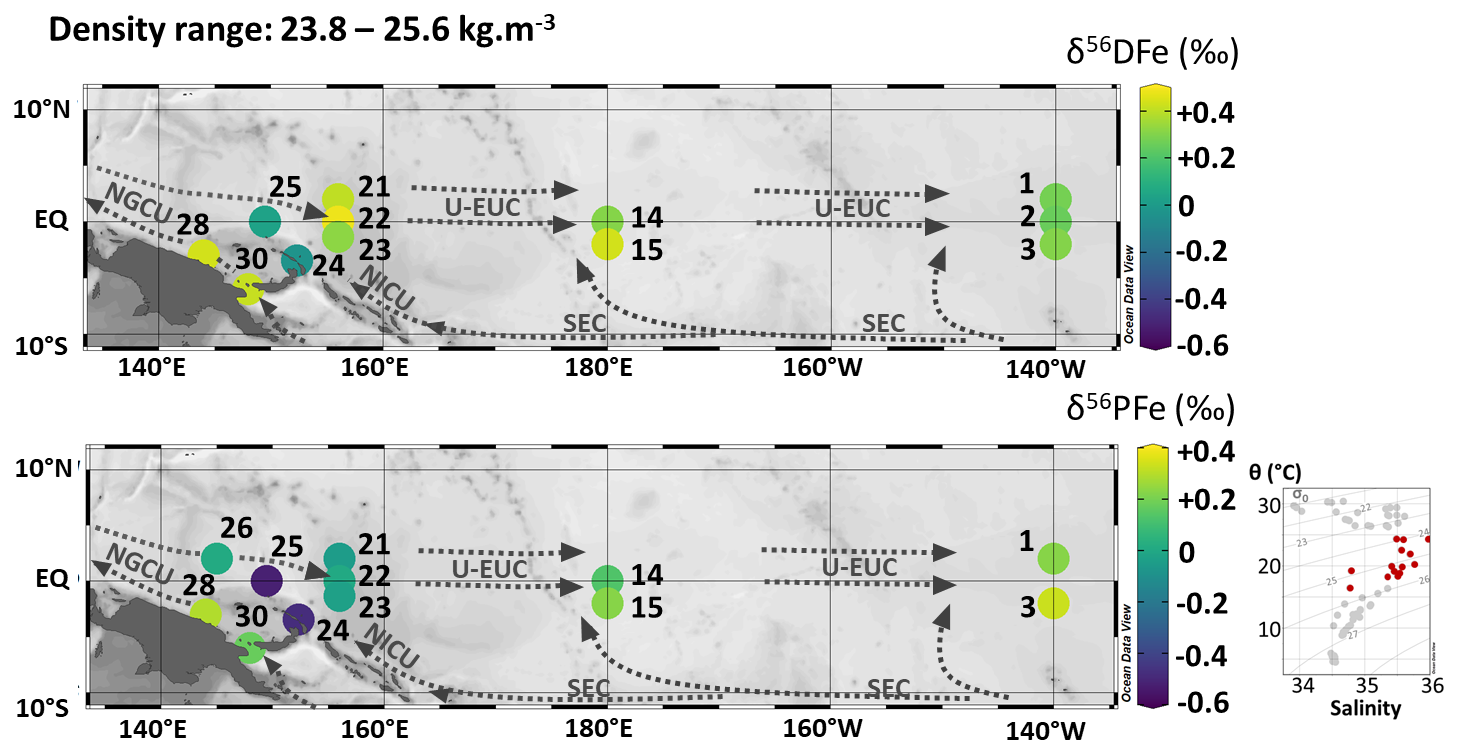

Figure 9 Map of dissolved (δ⁵⁶DFe) and particulate (δ⁵⁶PFe) iron isotopes for samples with potential densities between 23.8 and 25.6 kg m⁻³. Station numbers are displayed next to the colored dots. Main currents are represented: the upper Equatorial Undercurrent (U-EUC), the South Equatorial Current (SEC), the New Guinea Coastal Undercurrent (NGCU) and the New Ireland Coastal Undercurrent (NICU). In the bottom right corner, potential temperature (θ, °C) and salinity (S) of EUCFe samples. Samples in this density layer are shown in red. This figure was produced using Ocean Data View (Schlitzer, 2025).

We observed that δ⁵⁶DFe values were equal within uncertainties along the meridional transects between 2° N and 2° S (+0.40 ‰, +0.37 ‰ and +0.28 ‰ at 156° E, 180° E and 140° W, respectively) and similar consistency is observed for δ⁵⁶PFe (−0.03 ‰, +0.18 ‰ and +0.28 ‰ at the three same sections, Fig. 9 and Table 2). This isotopic homogeneity is consistent with the prevailing ocean circulation in the subsurface layer. Zonally, a slight decrease of δ⁵⁶DFe values and a slight increase of δ⁵⁶PFe values were observed eastward.

A comparison of DFe isotopic compositions (δ⁵⁶DFe) in EUCFe samples with data from the subtropical gyres provides further insight. While no data are available for the north subtropical gyre, this density layer has been documented in the south subtropical gyre along 170° W (GP19 cruise) at 10° S (Station 19) with δ⁵⁶DFe = $+\mathrm{0.64}\pm \mathrm{0.32}$ ‰, and at the equator (Station 21) with δ⁵⁶DFe = +0.70 ± 0.35 ‰ (GEOTRACES Intermediate Data Product Group, 2025). These two datapoints are in good agreement. They may appear to be significantly different from our data (∼ 0.37 ± 0.1 ‰ at 180° E), however given their uncertainties, they are in reasonable agreement. They do not help explain the slight eastward decrease of δ⁵⁶DFe along the equator described above.

Overall, despites small variations, these observations suggest a relatively wide isotopic homogeneity at subsurface depths (110–220 m) likely driven by equatorial upwelling and the subsequent meridional transport of seawater.

5.2.3 Lower part of EUC: Central Waters (170–320 m; 25.6–26.55 kg m⁻³)

The density layer between 25.6 and 26.55 kg m⁻³ is composed of two water masses: the Western South Pacific Central Water (WSPCW) (stations 1, 2, 3, 14, 15, 22, 23, 25, 28) and the North Pacific Central Water (NPCW) (stations 13, 21, 26) (Fig. 2). WSPCW is characterized by a salinity maximum of central waters while NPCW represents a salinity minimum. The lower part of the EUC (L-EUC) is located in this density layer (Fig. 10). This current is of particular importance, since it is the major vector for Fe transport along the equator from the western to the eastern Pacific. The lower EUC is not significantly influenced by the equatorial upwelling in the western equatorial Pacific, and water mostly originates from the PNG region (Grenier et al., 2011).

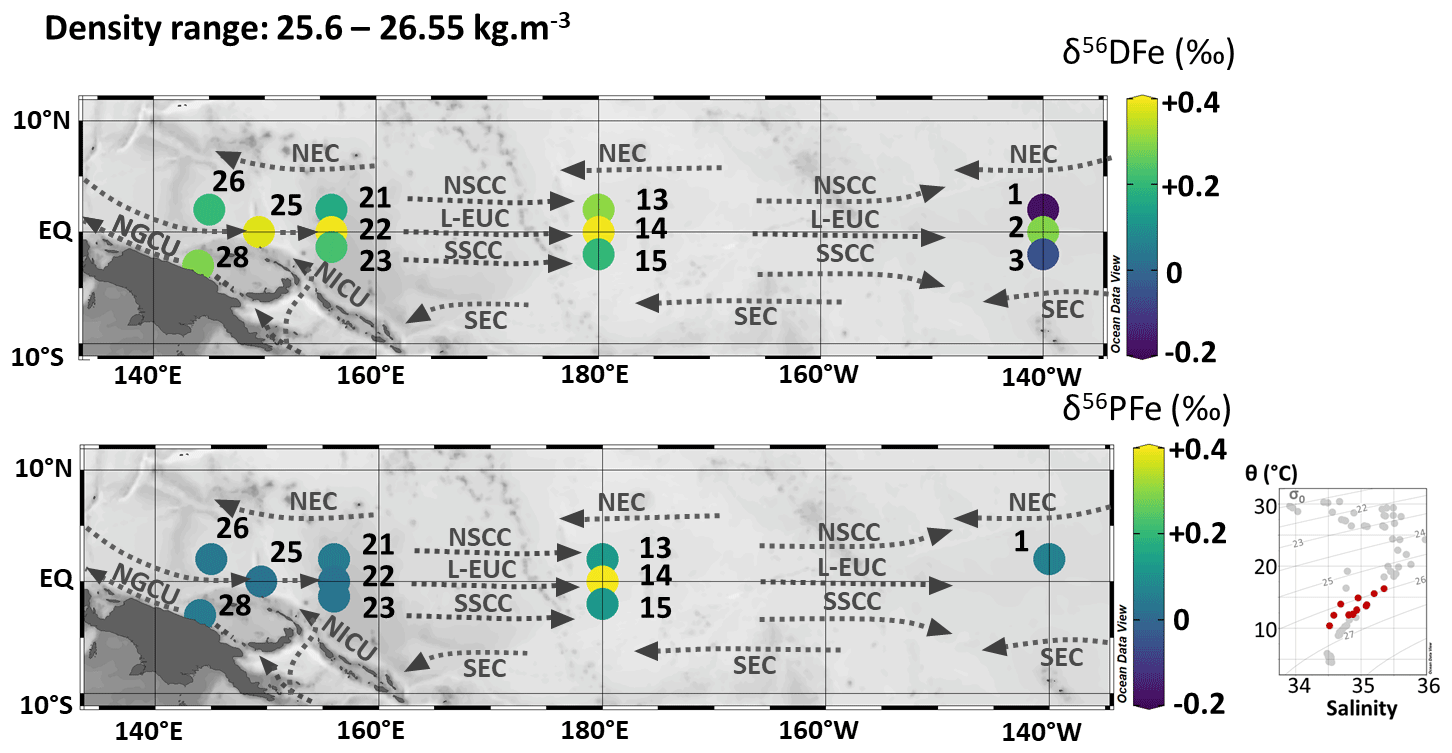

Figure 10 Map of dissolved (δ⁵⁶DFe) and particulate (δ⁵⁶PFe) iron isotopes for samples with potential densities between 25.6 and 26.55 kg m⁻³. Station numbers are displayed next to the colored dots. Main currents are represented: the lower Equatorial Undercurrent (L-EUC), the North and South Subsurface Countercurrents (NSCC and SSCC), the North and South Equatorial Current (NEC and SEC), the New Guinea Coastal Undercurrent (NGCU) and the New Ireland Coastal Undercurrent (NICU). In the bottom right corner, potential temperature (θ, °C) and salinity (S) of EUCFe samples. Samples in this density layer are shown in red. This figure was produced using Ocean Data View (Schlitzer, 2025).

Along the equator, at stations 25, 22, 14 and 2, samples have similar DFe isotopic composition (around +0.36 ‰), highlighting the lack of significant additional Fe sources to the lower EUC (Tsuchiya et al., 1989; Radic et al., 2011). δ⁵⁶DFe values are equal within uncertainties (Fig. 10 and Table 2). This suggests that the δ⁵⁶DFe signature is maintained over long distances within the EUC, a pattern previously reported by Radic et al. (2011) at two stations, and here confirmed as far east as 140° W. In contrast, δ⁵⁶PFe cannot be evaluated at station 2 due to missing PFe data, and values from stations 22 and 14 displayed significantly different values. These findings confirm the central role of the EUC for DFe transport across the Pacific. While earlier studies based on Fe concentrations suggested such transport (Slemons et al., 2012), isotopic data now confirm this conclusion and the fact that dissolved iron isotopic signature may be preserved, in over more than 7800 km (from station 25 to station 2). Long distance preservation of δ⁵⁶DFe signature has been underlined before for deeper layers, notably in the North Pacific and eastern Pacific with Fe transport from sedimentary and hydrothermal sources (Fitzsimmons et al., 2017; John et al., 2018; Sieber et al., 2024). Such a long distance of preservation of the δ⁵⁶DFe signature had never been observed before.

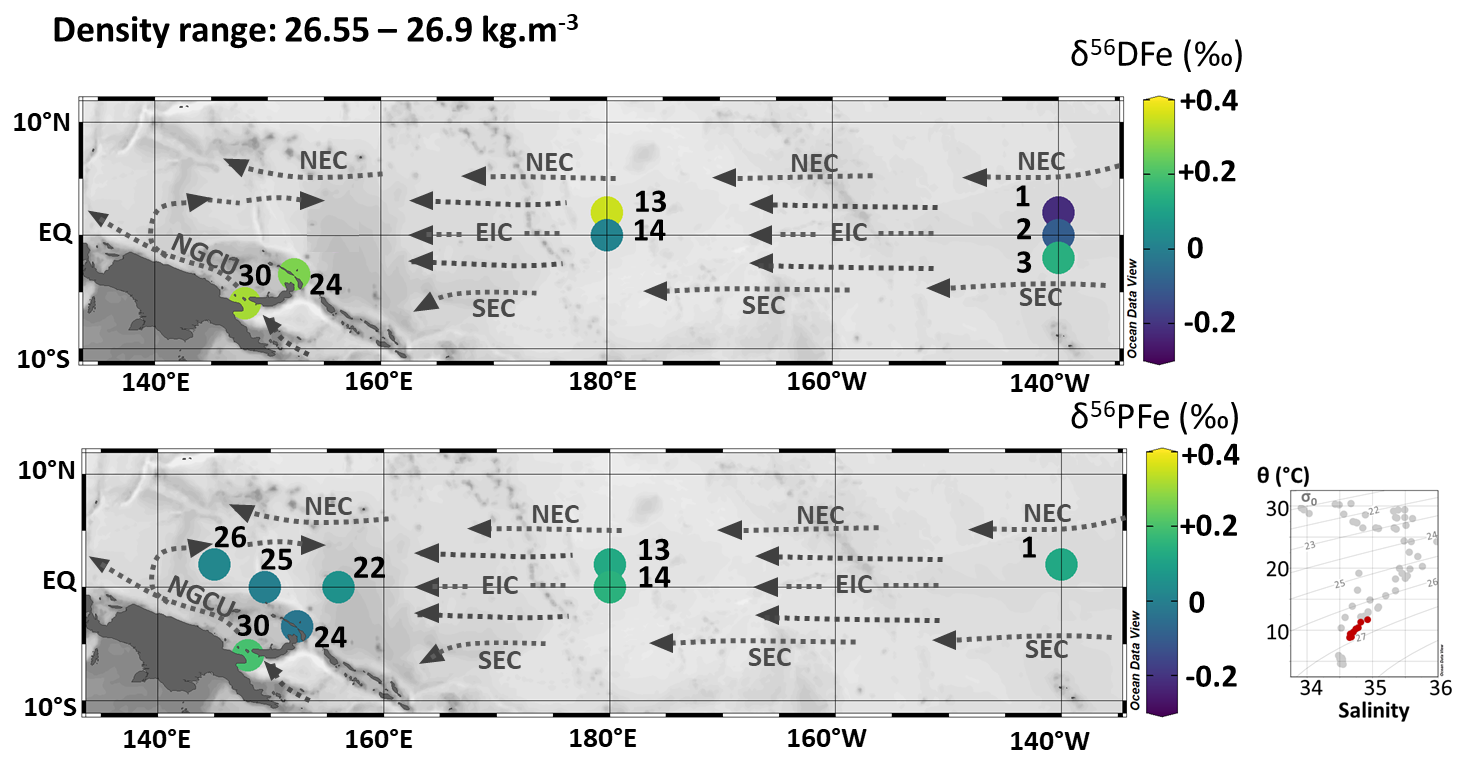

Figure 11 Map of dissolved (δ⁵⁶DFe) and particulate (δ⁵⁶PFe) iron isotopes for samples with potential densities between 26.55 and 26.9 kg m⁻³. Station numbers are displayed next to the colored dots. Main currents are represented: the Equatorial Intermediate Current (EIC), the North and South Equatorial Current (NEC and SEC), and the New Guinea Coastal Undercurrent (NGCU). In the bottom right corner, potential temperature (θ, °C) and salinity (S) of EUCFe samples. Samples in this density layer are shown in red. This figure was produced using Ocean Data View (Schlitzer, 2025).

Samples from stations 1 and 3 differ significantly from the other samples. They are characterized by negative dissolved iron isotopic compositions (−0.19 ‰ and −0.06 ‰) (Fig. 10 and Table 2). They are characterized by oxygen concentrations which are notably lower than those typically found in the core of the EUC (43 and 25 µmol kg⁻¹, compared to typical values around 130 µmol kg⁻¹). The currents supplying these stations, the SEC and NEC, originate from the east. These three observations support the conclusion that their Fe content may originate, at least partially, from the Californian and/or Peruvian oxygen minimum zones (OMZ). Those have been documented before, with negative or zero δ⁵⁶DFe values in the Californian OMZ (John et al., 2012), and DFe concentrations and isotopic compositions, around 1 nM and −0.5 ‰, observed around 12° S near the Peruvian coast (85 to 80° W) during the GP16 cruise (John et al., 2018). As above, this suggests a δ⁵⁶DFe signature preservation over long distances, on the order of 6400 km.

In the density layer of the lower EUC, iron isotopes reveal the presence of two distinct Fe sources in the central Pacific, lithogenic inputs from Papua New Guinea transported within the EUC, and also a likely additional eastern source from the eastern Pacific oxygen minimum zones.

5.2.4 South Antarctic Mode Water and Lower Central Waters (340–480 m; 26.55–26.9 kg m⁻³)

The density layer between 26.55 and 26.9 kg m⁻³ is composed of two water masses: the South Antarctic Mode Water (SAMW) (stations 22, 24, 25) and the Western South Pacific Central Water (WSPCW) (stations 1, 2, 3, 13, 14, 26, 30). In contrast to the shallower density layers, where currents predominantly flow eastward, this deeper layer exhibits westward currents (Fig. 11).

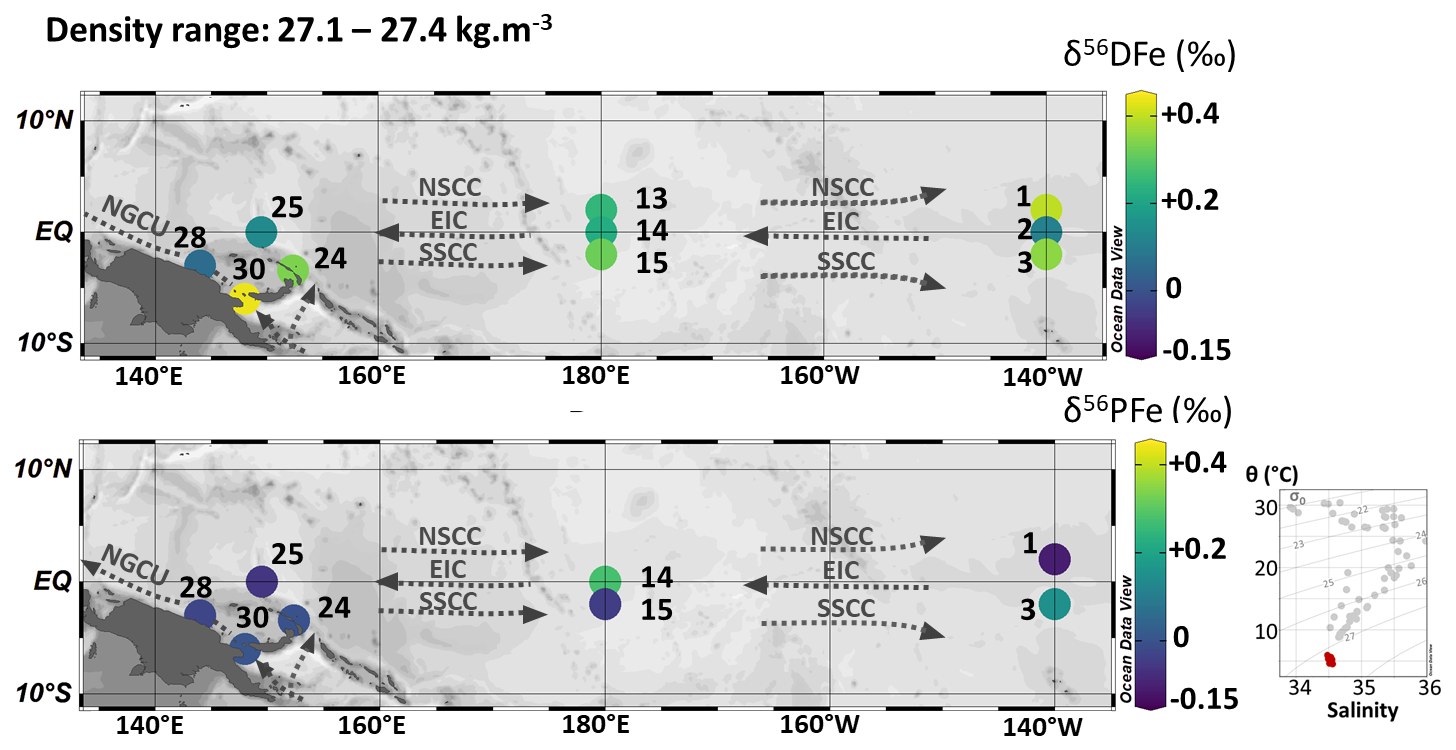

Figure 12 Map of dissolved (δ⁵⁶DFe) and particulate (δ⁵⁶PFe) iron isotopes for samples with potential densities between 27.1 and 27.4 kg m⁻³. Station numbers are displayed next to the colored dots. Main currents are represented: the Equatorial Intermediate Current (EIC), the North and South Subsurface Countercurrents (NSCC and SSCC), and the New Guinea Coastal Undercurrent (NGCU). In the bottom right corner, potential temperature (θ, °C) and salinity (S) of EUCFe samples. Samples in this density layer are shown in red. This figure was produced using Ocean Data View (Schlitzer, 2025).

DFe isotopic compositions at stations 1, 2, 3, 13 and 14 were variable: negative or near zero δ⁵⁶DFe at stations 1, 2 and 14 (between −0.22 ‰ and +0.01 ‰) and positive δ⁵⁶DFe at stations 3 and 13 (+0.14 ‰ and +0.35 ‰) (Fig. 11 and Table 2). δ⁵⁶DFe values increased westward from station 1 (−0.22 ± 0.09 ‰) to station 13 (+0.35 ± 0.07 ‰) and from station 2 (-0.10 ± 0.07 ‰) to station 14 (+0.01 ± 0.07 ‰). This westward increase in δ⁵⁶DFe follows the predominant direction of zonal currents. It is consistent with data from GP19 at 170° W at the equatorial station 21 (−0.07 ± 0.05 ‰, depth of 469 m) (GEOTRACES Intermediate Data Product Group, 2025). In contrast, δ⁵⁶PFe values at stations 1, 13, and 14 were indistinguishable from one another and similar to the UCC reference value. Samples from stations 1, 2, 3, 13 and 14 exhibited low oxygen concentrations (<64 µmol kg⁻¹). In contrast, samples from the western equatorial Pacific (stations 22, 24, 25, 26 and 30) had oxygen concentrations ranging from 101 to 162 µmol kg⁻¹.

These isotopic and oxygen observations suggest an Fe source from the eastern Pacific oxygen minimum zones (OMZ) and a progressive decline in the influence of eastern Pacific waters with the increase of δ⁵⁶DFe westward. It is consistent with our understanding of large-scale circulation patterns at these depths across the Pacific basin, and with the signatures of these areas as described above (John et al., 2012, 2018). In contrast, particulate data were indistinguishable from those of the UCC all along the EUCFe cruise and therefore do not reflect hydrodynamic structures.

5.2.5 Intermediate Waters (SEqIW and AAIW) (720–1000 m; 27.1–27.4 kg m⁻³)

The density layer between 27.1 and 27.4 kg m⁻³ is composed of two intermediate water masses: the South Equatorial Intermediate Water (SeqIW) (stations 1, 2, 3, 13, 14, 15, 25) and the Antarctic Intermediate Water (AAIW) (stations 24, 28, 30) (Fig. 12). In this layer, the Equatorial Intermediate Current (EIC), a westward current, is surrounded by two eastward currents, the North and South Subsurface Countercurrents (NSCC and SSCC). The water of the EIC is sheared between the NSCC and SSCC currents at about 2° N and 2° S, causing mixing of water brought in by different currents.

Along the equator, a uniform δ⁵⁶DFe signature was observed between stations 2, 14 and 25, around +0.15 ‰. North and south of it, in the NSCC and the SSCC, the δ⁵⁶DFe signatures were significantly heavier, around +0.32 ‰ and +0.34 ‰ respectively, and did not vary significantly zonally. This is consistent with the hydrodynamic structure (westward flowing EIC at the Equator and eastward flowing NSCC and SSCC at 2° N and 2° S) and may also reflect slightly lighter signatures originating from the eastern Pacific compared to the western Pacific. In contrast, no such consistency was observed for the δ⁵⁶PFe values.

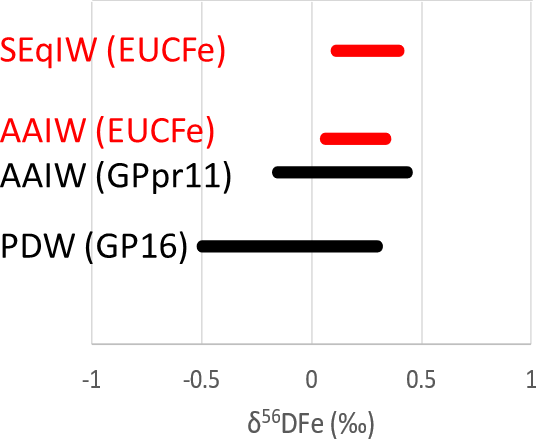

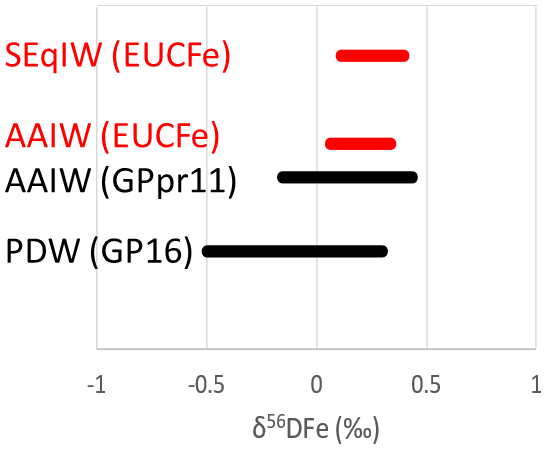

Figure 13 Comparison of δ⁵⁶DFe values in different water masses: the SEqIW sampled during EUCFe cruise (this study), the AAIW sampled during EUCFe (this study) and GPpr11 cruises (Ellwood et al., 2020) and the PDW sampled during GP16 cruise (John et al., 2018).

δ⁵⁶DFe of the AAIW and SeqIW from this study are compared with data from the South Pacific, GPpr11 (in the Southern Ocean, south of Australia) and GP16 cruises (John et al., 2018; Ellwood et al., 2020) in Fig. 13. The EUCFe AAIW signature (sampled at the western stations 24, 28 and 30 only) fell within the range of data previously reported, but with less variability (from +0.06 ‰ to +0.44 ‰, with an average of +0.28 ‰). As explained previously this likely reflects the impact of particulate – dissolved exchange and non-reductive dissolution processes which buffer the isotopic signature of this water mass toward about +0.3 ‰, in the PNG area.

The SEqIW (sampled at stations 1, 2, 3, 13, 14, 15, and 25) results from the mixing between the AAIW and the Pacific Deep Water (PDW). Its signatures fall within the range observed for those waters masses in previous studies, but they fall in the heavy range of those values and again have a smaller variability (from +0.11 ‰ to +0.40 ‰, average value of +0.24 ‰). This confirms (1) the large contribution of AAIW to the iron content of SEqIW and the fact that AAIW transits from the South through the PNG area and notably Vitiaz Strait before spreading in the equatorial band (Tomczak and Godfrey, 2003; Bostock et al., 2010), and (2) that the PDW contributing to the SEqIW reaches the Equatorial band with minor contribution from eastern Pacific OMZ derived iron, characterized by light isotopic signatures (John et al., 2018).

6 Conclusions

The main conclusions resulting from this study of concentrations and isotope compositions for iron in the upper 1000 m of the water column between 140° E and 140° W are shown in Fig. 14.

The goal of the EUCFe cruise was to determine the distribution of Fe along the equator between Papua New Guinea (PNG) and 140° W and to investigate the role of the Equatorial Undercurrent (EUC) in the Fe supply to the central equatorial Pacific. This study reports seawater Fe concentrations and isotopic compositions (δ⁵⁶Fe) in both the dissolved (DFe) and particulate (PFe) phases. By adding data from 11 additional stations, this work significantly enriches the data previously published from four stations on the same cruise (Radic et al., 2011; Labatut et al., 2014) and introduces a novel suggestion about an iron source from the eastern Pacific OMZ. The isotopic compositions ranged from −0.25 ‰ to +0.79 ‰ for dissolved iron and from −0.56 ‰ to +0.48 ‰ for particulate iron. Two distinct groups of stations were identified on the basis of Fe concentrations: western Pacific stations displaying PFe and DFe concentrations approximately seven times and twice larger than typical open ocean concentrations, respectively (stations 21, 22, 23, 24, 25, 26, 28, and 30, all located within 1200 km of the Papua New Guinea coast) and central Pacific open ocean stations, with PFe and DFe typical of the open ocean (stations 1, 2, 3, 7, 13, 14, and 15).

In the western equatorial Pacific, a large predominance of PFe concentrations over that of DFe was observed (80 % mol mol⁻¹ PFe compared to total Fe, on average). The isotope signature of PFe approached that of the UCC confirming the major influence of previously documented lithogenic inputs from PNG in this area (Milliman et al., 1999; Slemons et al., 2012). At two stations, distinctly light δ⁵⁶DFe and δ⁵⁶PFe signatures suggested local hydrothermal inputs. At all stations of this western area, a systematic positive difference between δ⁵⁶DFe and δ⁵⁶PFe was observed, Δ⁵⁶Fe_DFe−PFe = $+\mathrm{0.27}\pm \mathrm{0.32}$ ‰ (2 SD, n=27). This is interpreted as the result of equilibrium isotopic fractionation, in other words the co-occurrence of chemical fluxes from both phases toward the other. This probably reflects processes similar to the reversible scavenging process proposed for Th or REE (Bacon and Anderson, 1982; Nozaki et al., 1987; Nozaki and Alibo, 2003), as previously proposed (Abadie et al., 2017). Desorption and/or ligand-promoted dissolution are potential mechanisms, though the exact processes involved remain unclear (Abadie et al., 2017; Homoky et al., 2021). Isotopic signatures suggest that Fe is primarily released via non-reductive release of dissolved Fe from suspended particles and/or oxic sediment. New data from 11 additional stations demonstrate that this process extends up to 1200 km from the Papua New Guinea coast.

In the open ocean, between 180° E and 140° W, data from the chlorophyll maximum layer were used to estimate isotopic fractionation associated with phytoplankton uptake. Our data suggest that isotopic fractionation during phytoplankton uptake is small, on the order of a few tenths of per mil. Estimates of fractionation due to biological uptake must include consideration of phytoplankton composition, dominated here by cyanobacteria. Just below this layer, within the upper EUC, δ⁵⁶Fe values remain homogeneous across a broad region spanning 2° N to 2° S and 156° E to 140° W, consistent with equatorial upwelling and meridional Fe inputs. In the lower EUC, a DFe isotopic signature of ∼ +0.36 ‰, from Papua New Guinea eastward to at least 140° W, confirms the origin of the DFe carried within this current toward the HNLC area. However, an additional Fe source was identified bordering the lower EUC at 2° N and 2° S likely originating from the oxygen minimum zones (OMZ) of the eastern Pacific. This OMZ Fe source appears to be also traced deeper within central waters (200–500 m depth). The preservation of distinct Fe isotopic signatures over unprecedented long distances, 7800 km, is a key observation of this study. Finally, the limited variability of the δ⁵⁶DFe signatures in intermediate waters, averaging +0.24 ‰, confirms the major influence of AAIW transiting through the PNG area in the intermediate waters in the EUCFe area.

In conclusion, this study demonstrates the substantial influence of lithogenic inputs along ocean margins, where the water column (at least down to 1000 m) is affected by equilibrium fractionation between dissolved and particulate phases. It suggests the significance of non-reductive processes releasing dissolved iron from particulate iron. This non-reductive dissolution (NRD), occurs either at the sediment/seawater interface (i.e., external sources), or within the water column (i.e., internal processes). This highlights the need for a better understanding of these non-reductive DFe–PFe interactions, through in situ explorations, experimental work and biogeochemical modelling. Such processes likely influence the biogeochemical cycling of multiple elements. This study allowed identification of long-distance iron transport by ocean currents from an ocean margin and clarified the key role of the Equatorial Undercurrent (EUC). Finally, it suggested minor fractionation associated to phytoplankton uptake.

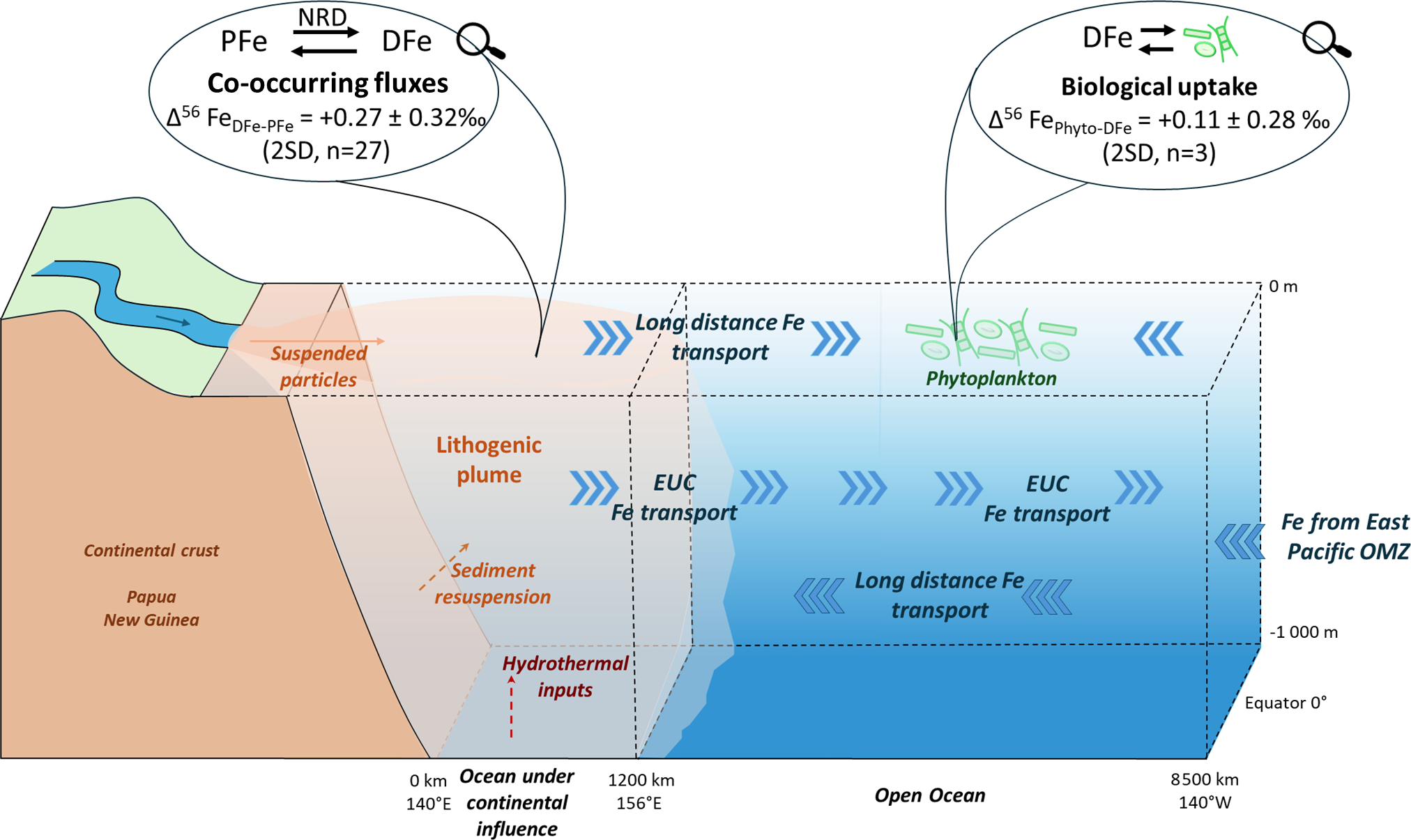

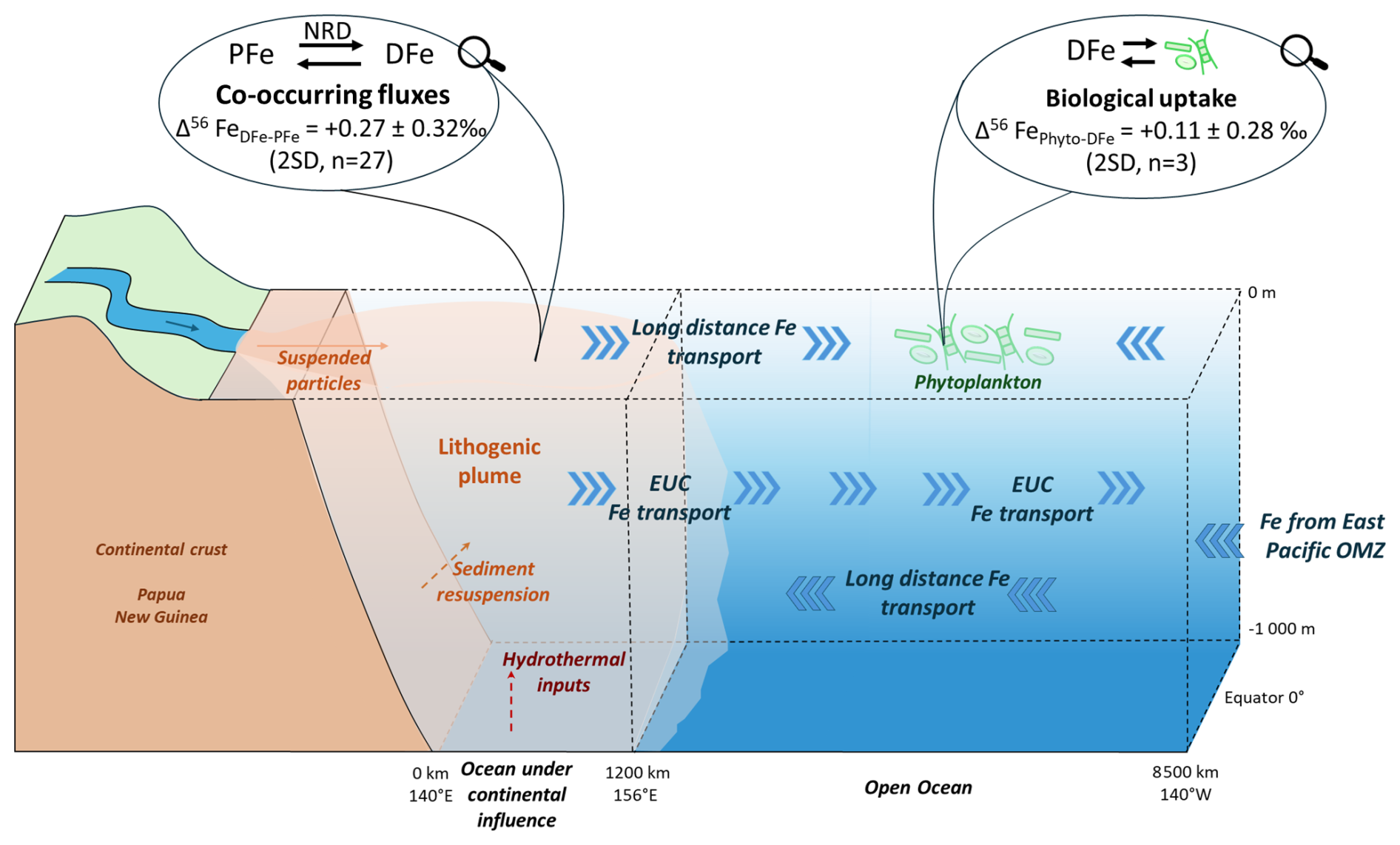

Figure 14 Illustration of Fe transport and transformation along the EUCFe cruise along the equator from the surface to 1000 m depth. OMZ stands for oxygen minimum zone and NRD for non-reductive dissolution.

Appendix A

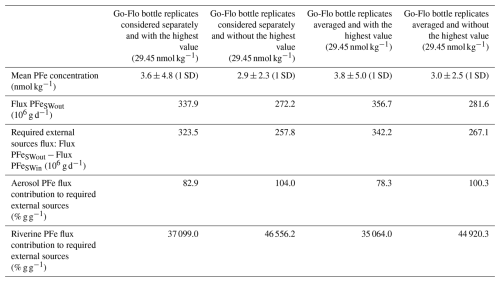

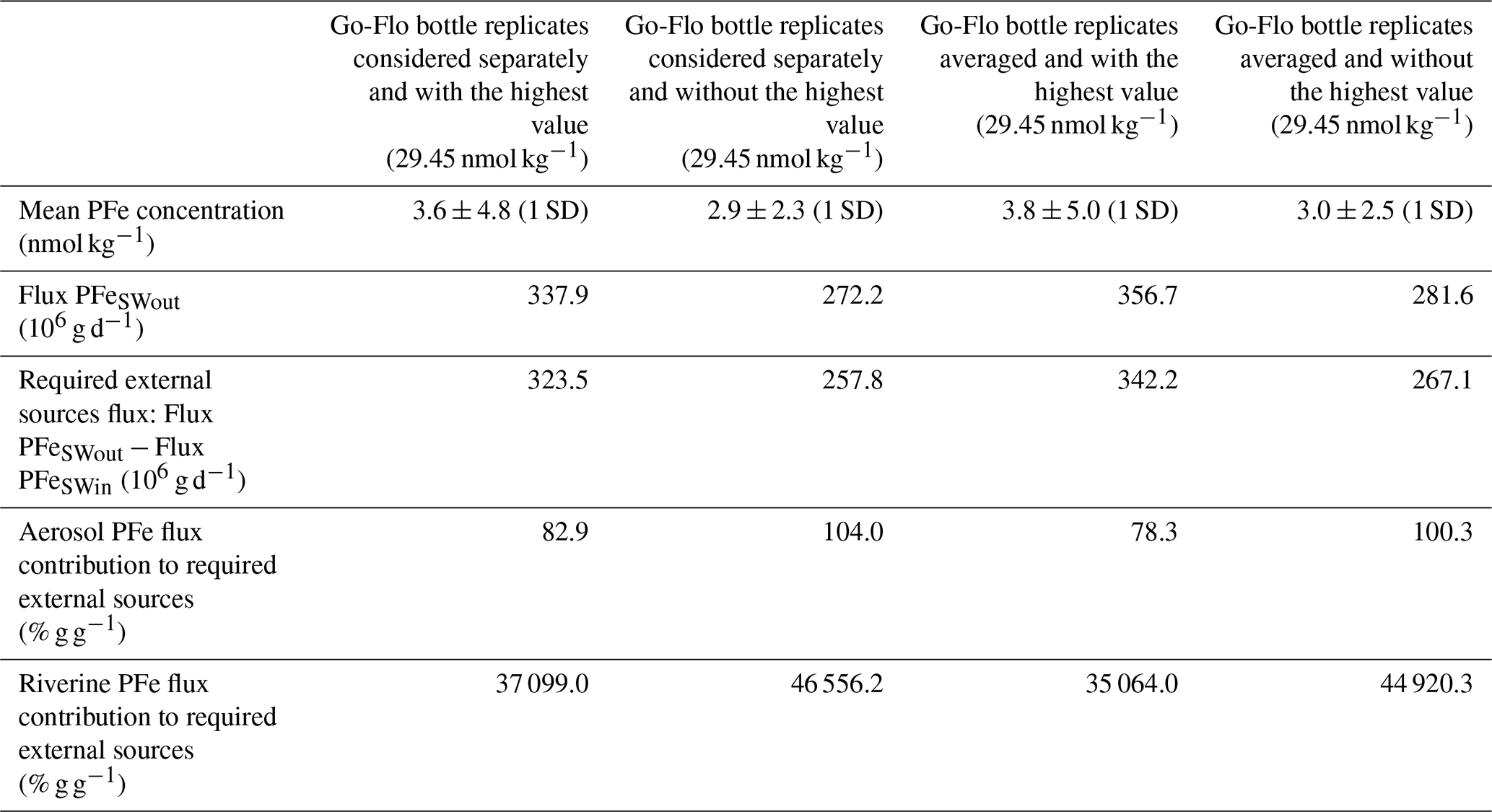

Table A1 Sensitivity tests for different scenarios. Mean PFe concentration, Flux PFe_SWout, the required external sources flux, Flux PFe_aerosol and Flux PFe_riverine contribution to required external sources (% g g⁻¹) according to different calculation methods. Go-Flo replicates are duplicate samples taken at sea, from the same cast.

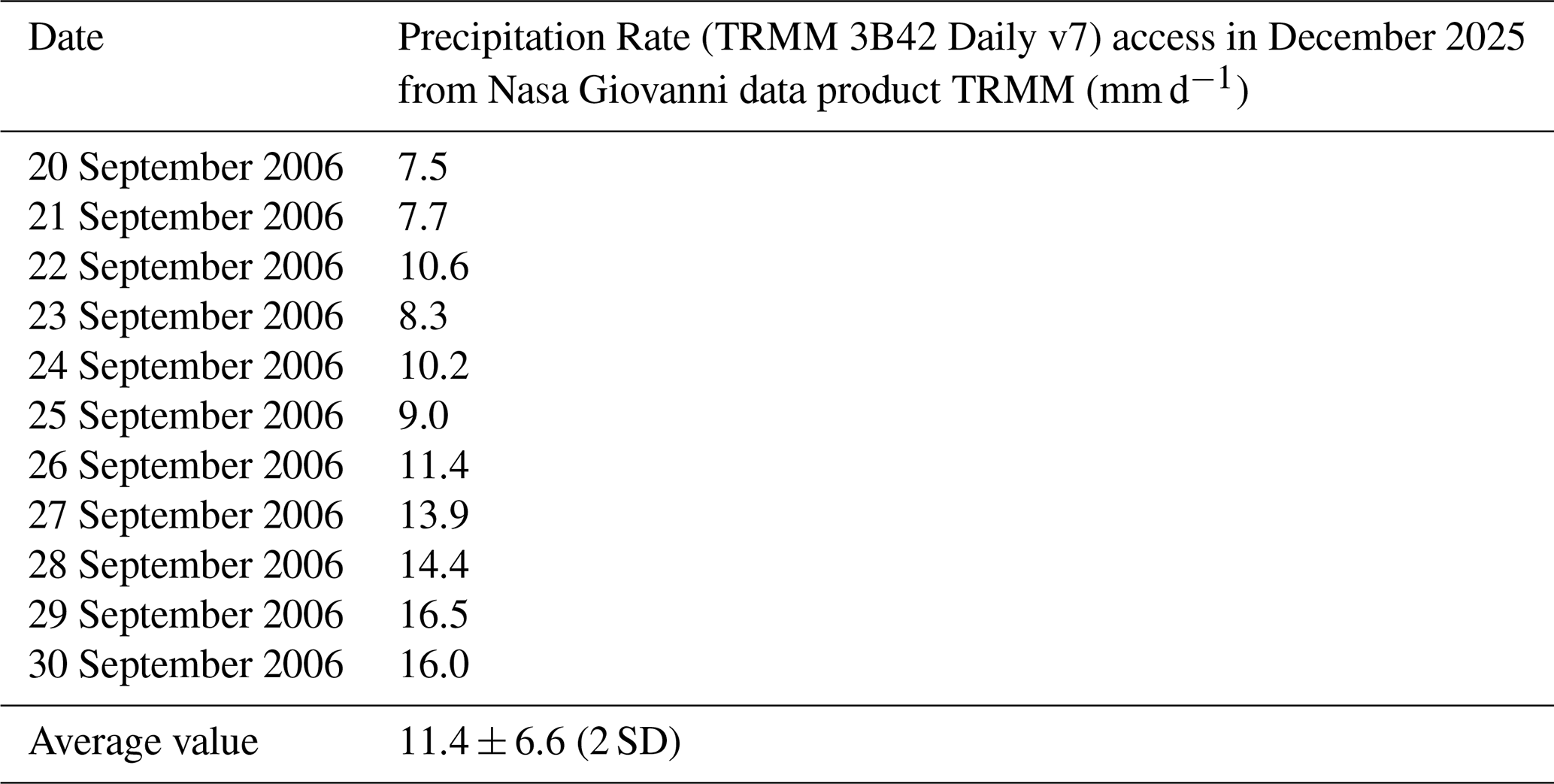

Table A2 Daily precipitation rates (mm d⁻¹) over the entire region considered in the box model (133° E–177° W, 9° S–15° N) from 20 to 30 September 2006. The data was obtained from Nasa Giovanni data product TRMM (3B42 Daily v7) (https://giovanni.gsfc.nasa.gov/giovanni/, last access: 30 December 2025).

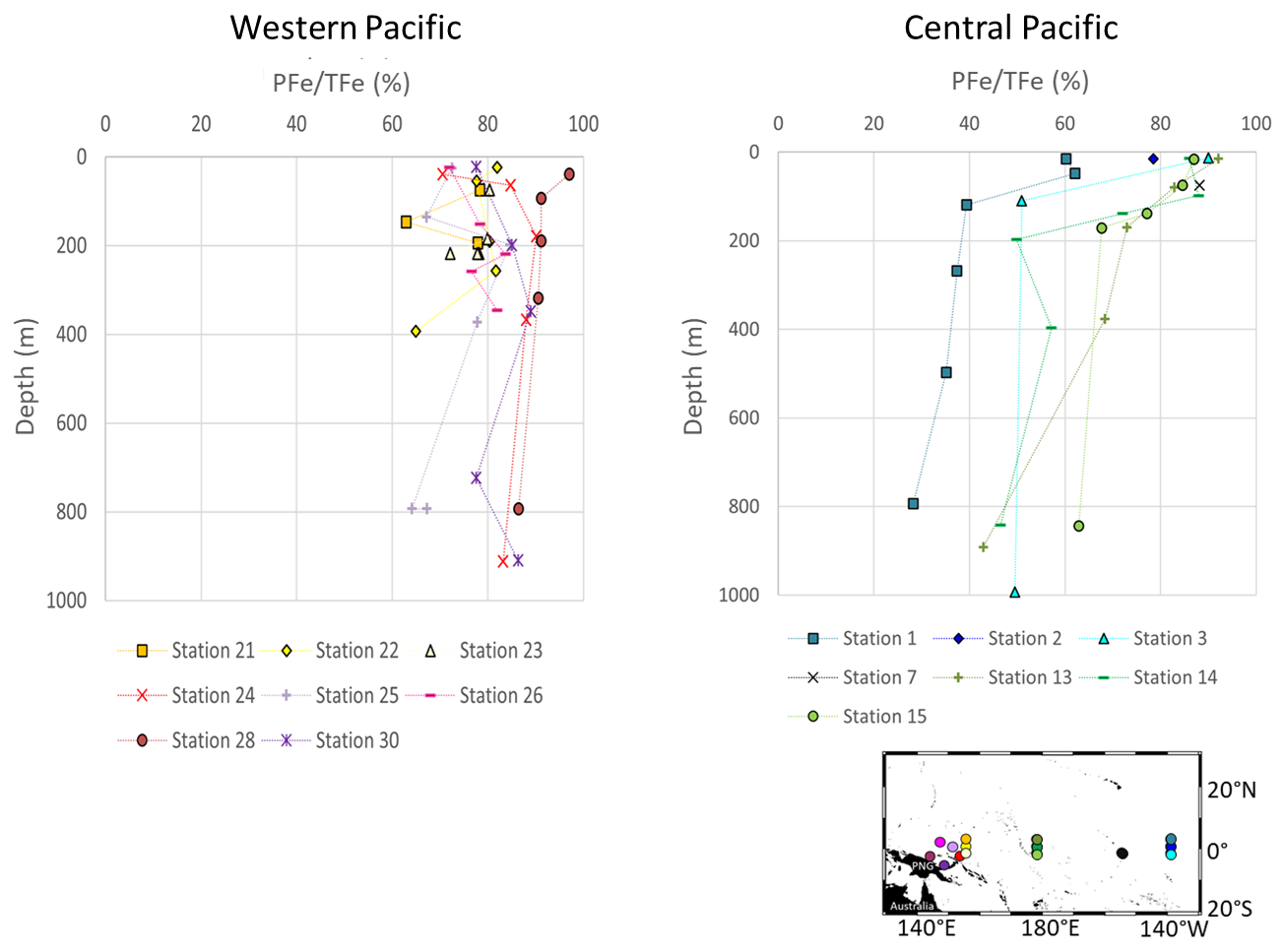

Figure A1 Fraction of particulate Fe (PFe) relative to total Fe (TFe) (% mol mol⁻¹) in the western and central equatorial Pacific.

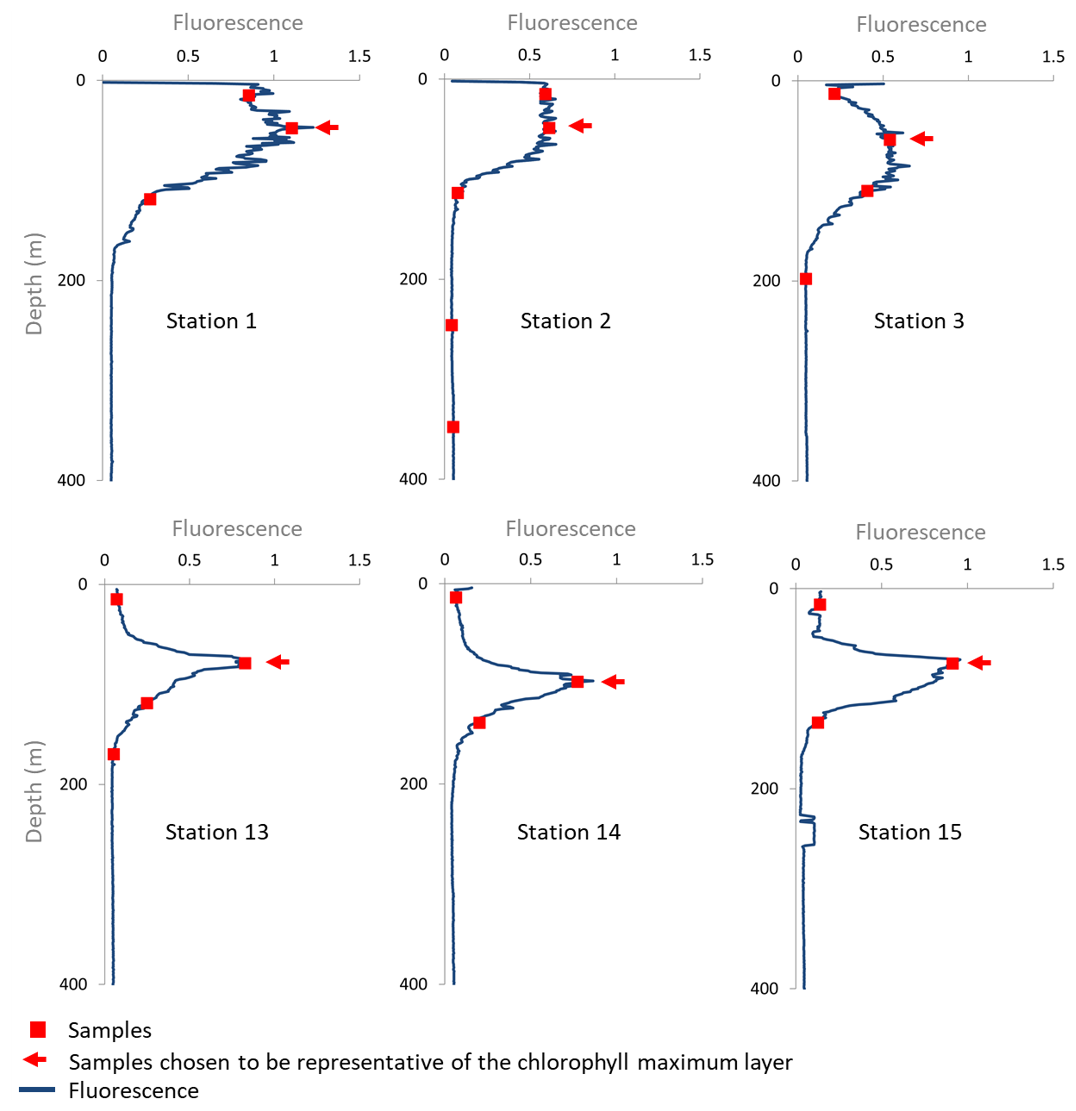

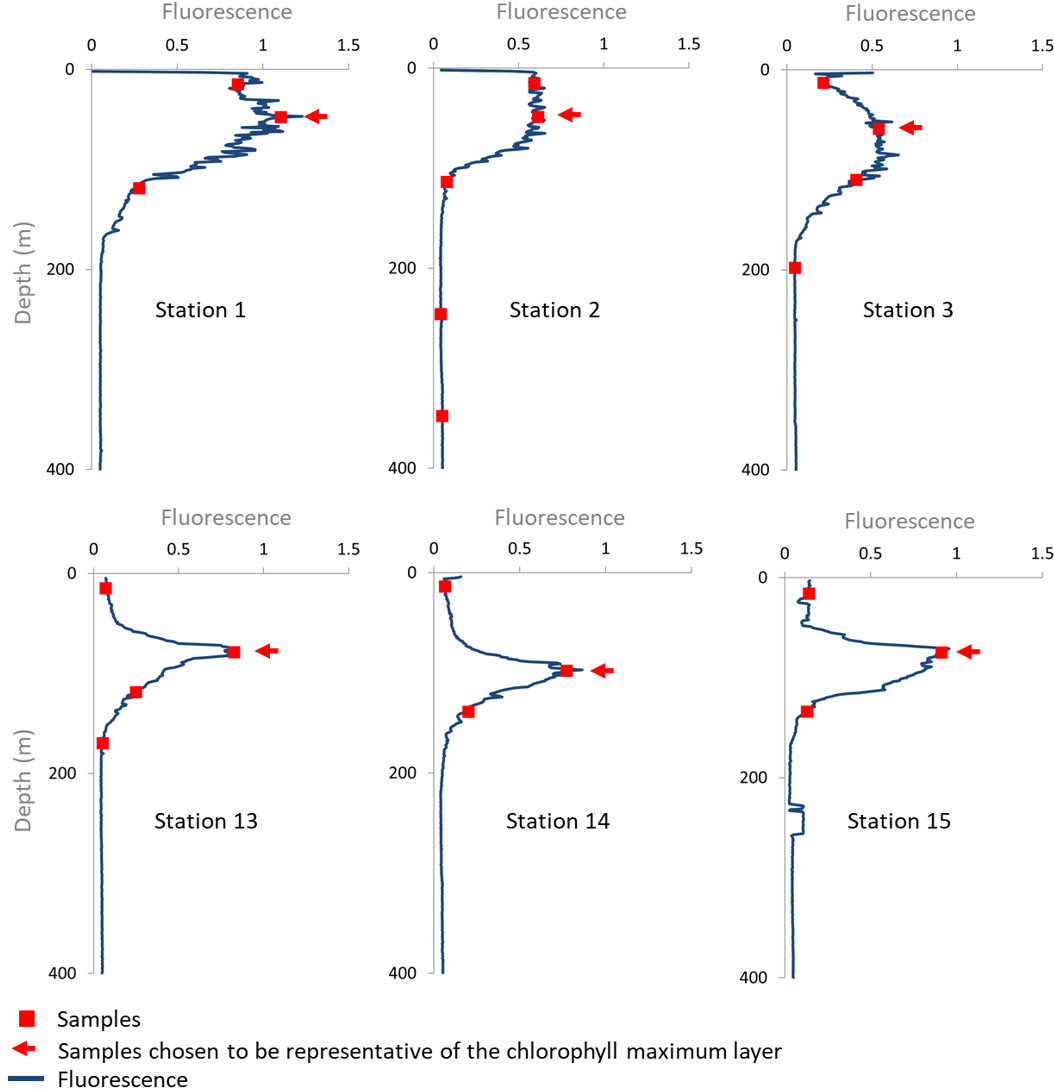

Figure A2 EUCFe cruise fluorescence profiles and sampling depth. Note that the fluorescence profiles were measured in the closest (in time) Niskin rosette cast at the same station. Samples chosen as representative of the chlorophyll maximum are shown by the (←) symbol.

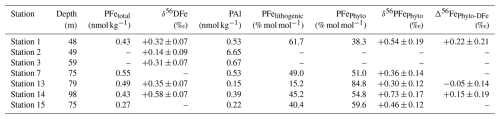

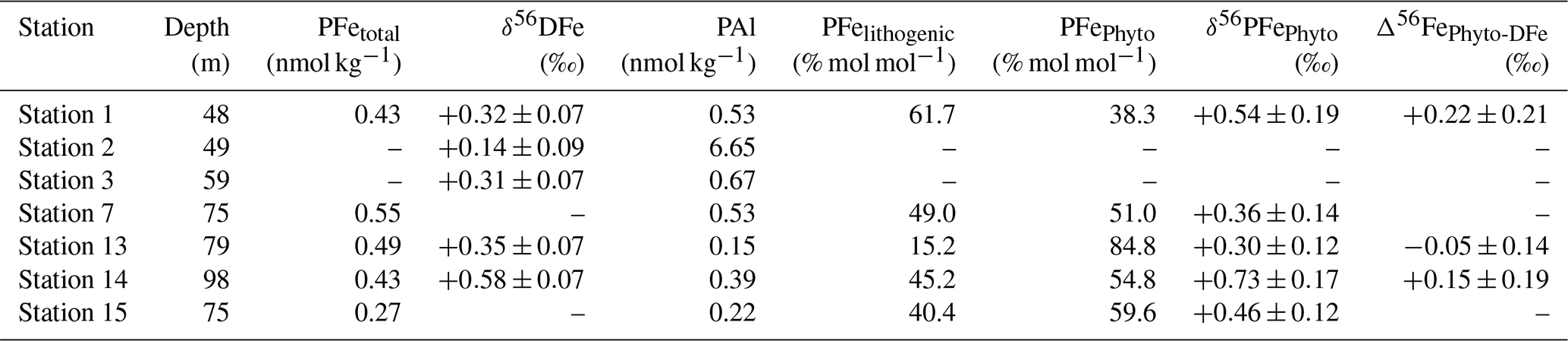

Table A3 Concentrations of particulate Fe and Al, dissolved Fe isotopic composition, estimated fractions of particulate phytoplanktonic and lithogenic Fe, isotopic composition of phytoplanktonic particulate Fe and the isotopic fractionation during biological uptake (Δ⁵⁶Fe_Phyto-DFe) in the chlorophyll maximum layer. Uncertainties are reported as 95 % confidence levels. Relative uncertainties for Fe and Al concentrations are 4.3 % (95 % confidence level).
